SL 11 124 20 S

Headers, Male Pins Overview

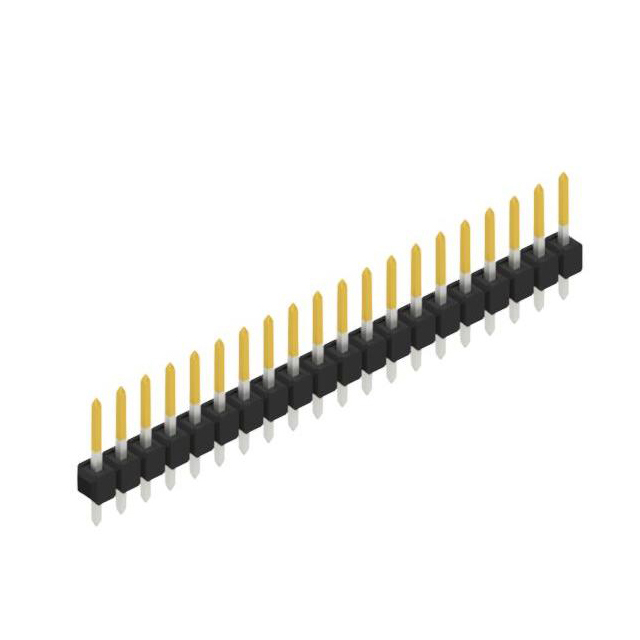

The SL 11 124 20 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 20-position configuration with a 2.54 mm (0.100 inch) pitch. The component utilizes through-hole termination for PCB mounting and includes tin-plated contacts to ensure reliable electrical connectivity. Designed for perpendicular orientation relative to the printed circuit board, this connector supports standard insertion depths and offers a compact profile suitable for dense electronic assemblies requiring robust mechanical stability.

Headers, Male Pins Feature Summary

• Single-row male pin header design for direct PCB integration
• Tin-plated contact surfaces for corrosion resistance
• Perpendicular mounting orientation for space-efficient layouts

Headers, Male Pins Applications

• General-purpose electronic device interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure compatibility with mating connectors regarding contact geometry and insertion force requirements. Confirm that the through-hole footprint matches the target PCB design guidelines before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 20-pin single-row male header with a 2.54 mm pitch is required. Consider the perpendicular mounting style for applications where vertical clearance is limited. Evaluate the tin plating suitability for the operating environment and mating cycle expectations compared to gold or silver alternatives.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered connectors from Fischer Elektronik. The series typically offers various pole counts and row configurations to accommodate different circuit density needs. The SL 11 124 20 S represents a specific variant optimized for 20-way connections within this standardized product family.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs using generic 2.54 mm pitch male headers only if mechanical dimensions and electrical ratings match exactly.
