SL 11 124 24 G

Headers, Male Pins Overview

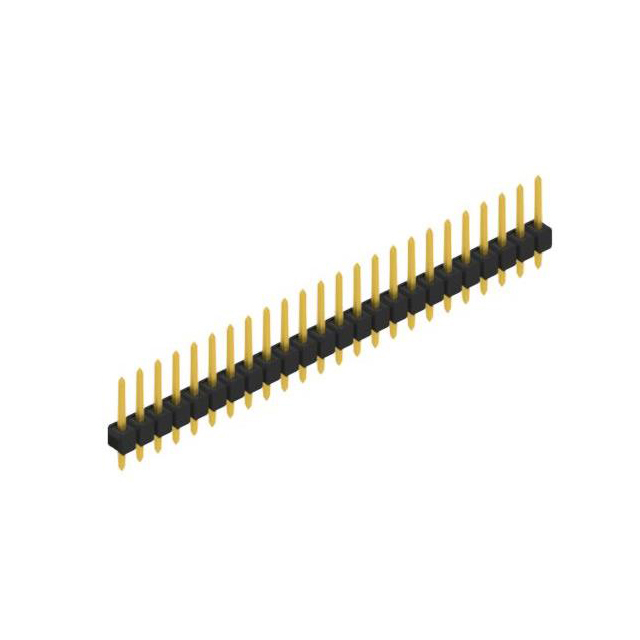

The SL 11 124 24 G is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row with 24 contacts and a standard pitch of 0.100 inches (2.54 mm). The contact cross-section measures 0.635 mm. The mating section is gold-plated to ensure reliable conductivity, while the tail section utilizes tin plating for soldering stability. This component supports insertion depths of up to 3.00 mm and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male header configuration with square contact cross-sections
• Gold-plated mating surfaces for enhanced signal integrity
• Through-hole installation compatible with standard PCB fabrication processes

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control system board-to-board connections
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating on the mating area as per manufacturer specifications. Ensure the part number matches the exact pin count of 24. Confirm that the thermal profile requirements align with the stated maximum operating temperature of 163°C during assembly. Cross-reference the datasheet for precise mechanical dimensions to guarantee compatibility with the target PCB footprint.

Headers, Male Pins Selection Notes

Select this model when a single-row, 24-position header is required with high-conductivity gold contacts. The 2.54 mm pitch ensures broad compatibility with standard connectors. Consider the 3.00 mm insertion depth for adequate mechanical retention. Choose this variant over tin-only versions if corrosion resistance or low contact resistance is critical for the application environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of Fischer Elektronik male headers. The series offers various contact counts ranging from 1 to 36 positions in a single row. The SL 11 124 designation typically indicates specific dimensional characteristics within the series, distinguishing it from other variants like the SL 11 112 or SL 11 SMD lines which may differ in height or mounting style.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 24-pin count, 2.54 mm pitch, and single-row layout. Verify that any alternative part supports the same gold-plated contact finish and through-hole mounting method. Check mechanical height constraints to ensure the replacement fits within the available vertical space on the assembly.
