SL 11 124 24 Z

Headers, Male Pins Overview

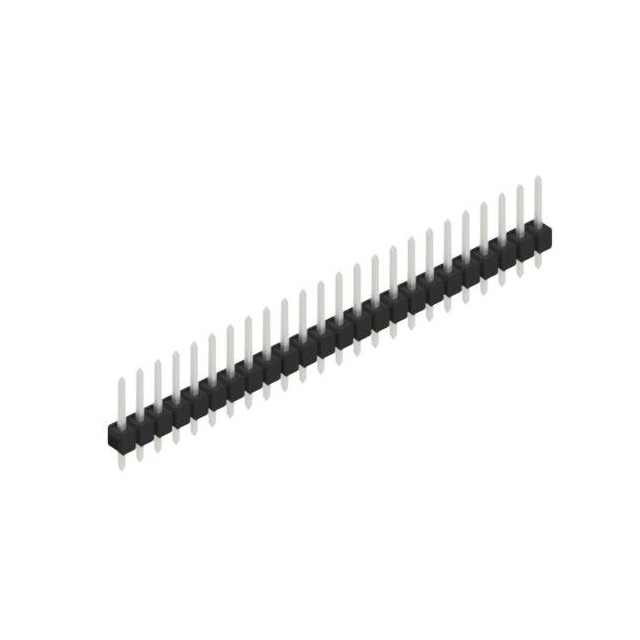

The SL 11 124 24 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 24 positions with a 0.635 mm (0.025 inch) pitch, designed for through-hole PCB mounting. The connector utilizes tin-plated copper-tin contacts and polyamide insulation. Rated at 3 A and 250 V, it operates within a temperature range of -40°C to +163°C. The component includes additional parts for secure assembly.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact circuit board integration
• Precision-engineered 0.635 mm pitch ensuring reliable signal transmission
• Tin-plated contacts providing corrosion resistance and conductivity

Headers, Male Pins Applications

• Through-hole PCB interconnection systems
• Industrial control module interfaces
• Electronic testing equipment connectors

Headers, Male Pins Procurement Notes

Verify the exact part number against manufacturer datasheets to confirm contact count and pitch specifications. Ensure compatibility with mating socket connectors regarding the 0.635 mm spacing. Check insulation material ratings for high-temperature soldering processes if required by the application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with fine 0.635 mm spacing is required. Consider the 3 A current rating and 250 V voltage limit for electrical safety. Verify that the through-hole mounting style aligns with the target PCB design constraints and mechanical stability requirements.

Headers, Male Pins Part Context

This model belongs to the SL 11 series of precision pin headers from Fischer Elektronik. The series is characterized by fine-pitch configurations suitable for dense electronic assemblies. The specific designation indicates a 24-position variant within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 24-pin count, and through-hole mounting type. Verify that alternative manufacturers offer identical tin plating and polyamide insulation properties to ensure functional equivalence in thermal and electrical performance.
