SL 11 124 27 G

Headers, Male Pins Overview

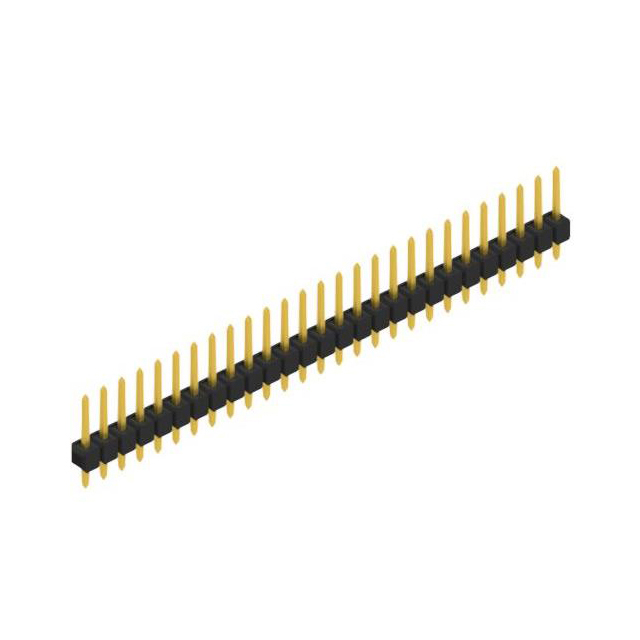

The Fischer Elektronik SL 11 124 27 G is a male PCB header connector featuring a single row with 27 positions and a 0.635 mm (0.025 inch) pitch. It utilizes through-hole termination for secure board mounting. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. Designed for compact electronic assemblies, this component offers precise alignment and stable mechanical connection within tight spatial constraints.

Headers, Male Pins Feature Summary

• Single-row male header configuration for space-efficient circuit integration
• Gold-plated contact surfaces ensuring durable electrical connectivity
• Through-hole mounting method providing robust mechanical stability

Headers, Male Pins Applications

• Compact consumer electronics assemblies
• Precision instrumentation interfaces
• Industrial control module connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating specification. Confirm that the 0.635 mm pitch matches the mating connector requirements. Ensure the 27-position count aligns with the circuit design needs. Check datasheet for thermal reflow limits during assembly processes.

Headers, Male Pins Selection Notes

Select this model when a low-profile, high-density interconnect solution is required. The 0.635 mm pitch allows for tighter spacing compared to standard 2.54 mm headers. Gold plating is suitable for applications requiring frequent mating cycles or harsh environmental conditions. Verify compatibility with mating socket connectors of identical pitch and row configuration.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL series of precision PCB connectors. The series is characterized by small form factors and high pin counts in limited spaces. The SL 11 124 variant specifically addresses applications needing reliable single-row interconnections with fine pitch capabilities.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 27 positions, single row, and gold-plated contacts. Generic 2.54 mm headers are incompatible due to pitch differences. Consult manufacturer cross-reference lists for verified equivalent part numbers.
