SL 11 124 27 Z

Headers, Male Pins Overview

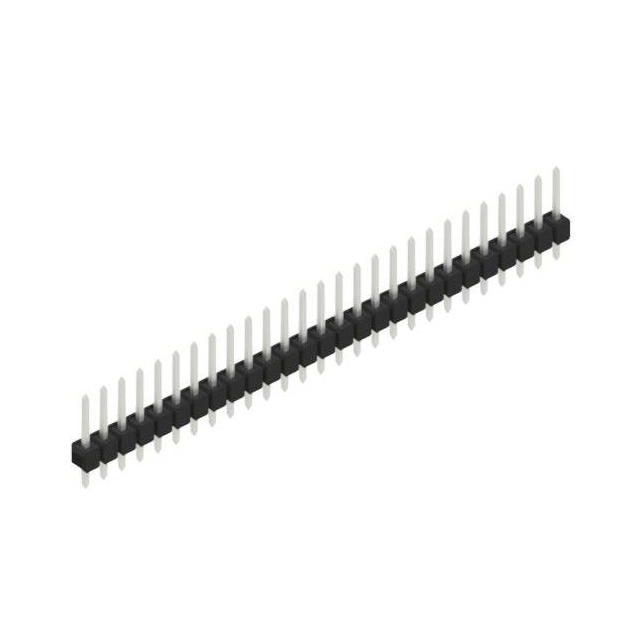

The Fischer Elektronik SL 11 124 27 Z is a single-row through-hole male header connector with 27 positions. It features a 0.100 inch (2.54 mm) pitch and square contact shapes. The contacts are tin-plated copper-silver alloy, with a mating length of 0.213 inches (5.40 mm) and a column length of 0.118 inches (3.00 mm). The total contact length is 0.441 inches (11.20 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Precision-engineered single-row male header for reliable PCB interconnection.
• Square contact shape ensures stable mechanical alignment during mating.
• Through-hole mounting technique provides secure solder joint integrity.

Headers, Male Pins Applications

• Industrial control systems requiring robust signal connections.
• General-purpose electronic assemblies needing standard pitch headers.
• Automotive electronics utilizing high-reliability board-to-board links.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' corresponds to the tin-plated variant in official datasheets. Confirm pin count matches the '27' designation. Ensure compatibility with mating receptacles having matching 2.54 mm pitch and square pin profiles. Check insulation material specifications against environmental requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 27-position male header is required. The 2.54 mm pitch suits standard PCB layouts. Tin plating offers cost-effective conductivity. Verify that the through-hole mounting style aligns with the assembly process. Consider the operating temperature range if deployed in extreme environments.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors by Fischer Elektronik. The series focuses on compact, high-density interconnect solutions. The SL 11 124 variant specifically denotes the housing dimensions and row configuration. It complements other series like MK 222 for complementary socket needs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 27-pin count, 2.54 mm pitch, and single-row male configuration. Verify identical contact plating (tin) and insulation material (PA46). Cross-reference with Fischer Elektronik's SL 11 124 family for equivalent pin counts. Generic equivalents require strict dimensional verification.
