SL 11 124 28 G

Headers, Male Pins Overview

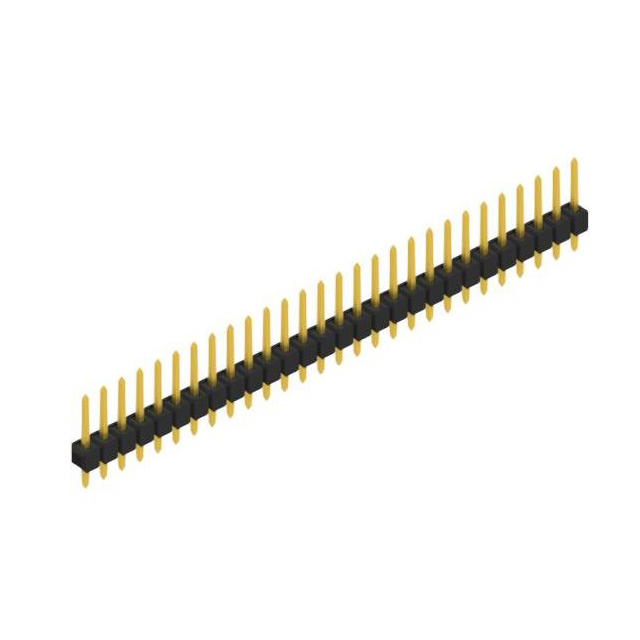

The SL 11 124 28 G is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole mounting. It features a single row with 28 positions and a contact pitch of 0.100 inches (2.54 mm). The contacts utilize a square cross-section of 0.635 mm. This component employs gold plating on the mating interface to ensure reliable electrical performance in demanding environments.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact board integration
• Gold-plated mating contacts for enhanced corrosion resistance
• Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control system signal routing
• Test and measurement equipment connections

Headers, Male Pins Procurement Notes

Verify that the suffix 'G' correctly denotes the gold-plated contact finish required for your application environment. Confirm the pin count matches exactly 28 positions. Ensure the through-hole footprint aligns with your PCB design guidelines before finalizing the order.

Headers, Male Pins Selection Notes

Select this part when a single-row male header with gold contacts is necessary. The 2.54 mm pitch ensures compatibility with standard ribbon cables or mating sockets. Consider the SL 11 124 28 S variant if tin plating is sufficient for the operating conditions.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered connectors by Fischer Elektronik. The series offers various contact counts and plating options. The SL 11 124 designation indicates the specific housing style and row configuration within this product line.

Headers, Male Pins Replacement Considerations

The SL 11 124 28 S serves as an alternative with tin plating instead of gold. Other variants in the SL 11 124 family offer different pin counts while maintaining the same mechanical dimensions and pitch specifications.
