SL 11 124 28 S

Headers, Male Pins Overview

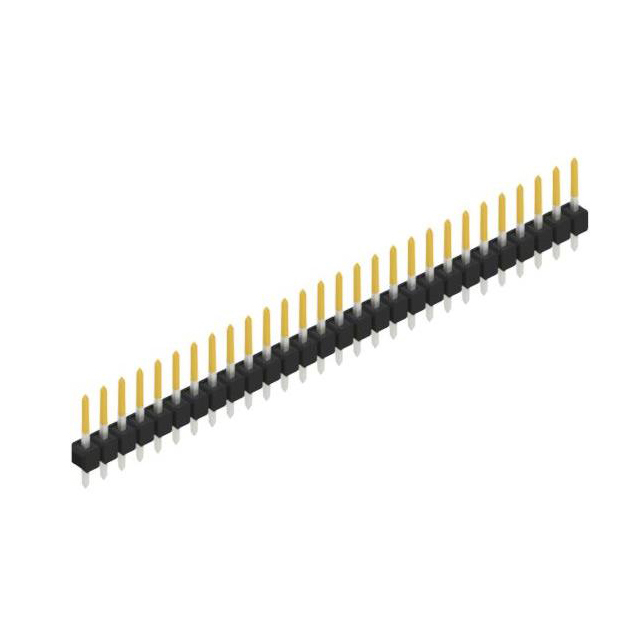

The SL 11 124 28 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm contact dimension and a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The component contains 28 positions with square-shaped male pins. Contact surfaces are tin-plated to ensure reliable electrical connections. The housing utilizes polyamide (PA46) insulation material, providing structural stability and thermal resistance suitable for standard electronic assembly processes.

Headers, Male Pins Feature Summary

• Single-row male pin configuration with 0.635 mm contact dimensions
• Through-hole termination style for secure PCB mounting
• Tin-plated contact surfaces for corrosion resistance
• Polyamide (PA46) insulating housing material

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Signal routing in industrial control systems
• Prototype development and testing fixtures
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm plating specifications and dimensional tolerances. Ensure compatibility with mating socket connectors regarding contact geometry and insertion force requirements. Cross-reference the part number with Fischer Elektronik's current product catalog to validate availability and any recent design revisions or obsolescence notices before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm contacts and 2.54 mm pitch is required for through-hole applications. Consider the tin-plated finish for general environmental conditions and the PA46 housing for standard thermal performance. Evaluate the 28-position count against board space constraints and ensure the straight orientation aligns with the mechanical layout of the target assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers, characterized by 0.635 mm contact sizes and 2.54 mm spacing. The series offers various position counts and termination options. The SL 11 124 28 S specifically denotes a 28-position variant within this standardized line, maintaining consistent mechanical interfaces across the family for interchangeable design usage.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official substitution guide for direct equivalents. Verify that alternative parts match the 0.635 mm contact width, 2.54 mm pitch, and 28-position count. Ensure mating connector compatibility and identical mounting orientation to prevent mechanical interference.
