SL 11 124 28 Z

Headers, Male Pins Overview

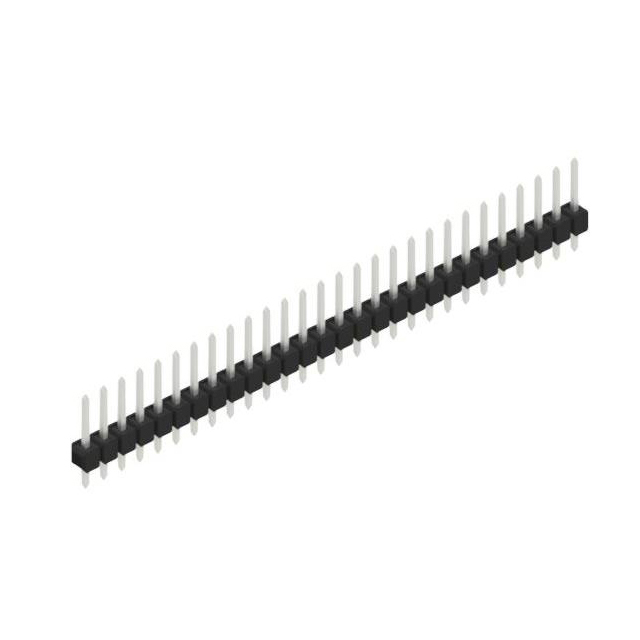

The SL 11 124 28 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 28 positions with a 0.635 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are tin-plated copper alloy pins with a mating contact length of 5.40 mm and a column length of 3.00 mm. The total contact length measures 11.20 mm, while the insulation height is 2.80 mm. The connector utilizes polyamide (PA46) insulation material and square-shaped terminals to ensure secure mechanical retention and reliable electrical connectivity in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct PCB insertion
• Precision 0.635 mm pitch spacing for standardized board layouts
• Tin-plated copper alloy contacts for corrosion resistance
• Polyamide insulation housing for thermal stability

Headers, Male Pins Applications

• General purpose electronic interconnects
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's latest datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the 28-position variant. Confirm that the through-hole termination style aligns with your PCB fabrication capabilities and soldering process requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required for through-hole applications. Compare the 28-position capacity against circuit design needs. Consider the tin plating for general use versus gold options if higher conductivity or wear resistance is necessary. Verify that the straight terminal orientation fits within the available vertical clearance of the enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors from Fischer Elektronik. The series offers various row counts and position configurations. The SL 11 124 designation indicates a specific housing style within the lineup. This model represents a mid-range position count option suitable for dense but manageable connection requirements in compact electronic devices.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 0.635 mm pitch and 28 positions, such as the SL 11 124 28 G for gold plating variants. Cross-manufacturer replacements must match the 2.54 mm pitch, single-row male format, and through-hole termination style to ensure mechanical compatibility.
