SL 11 124 29 G

Headers, Male Pins Overview

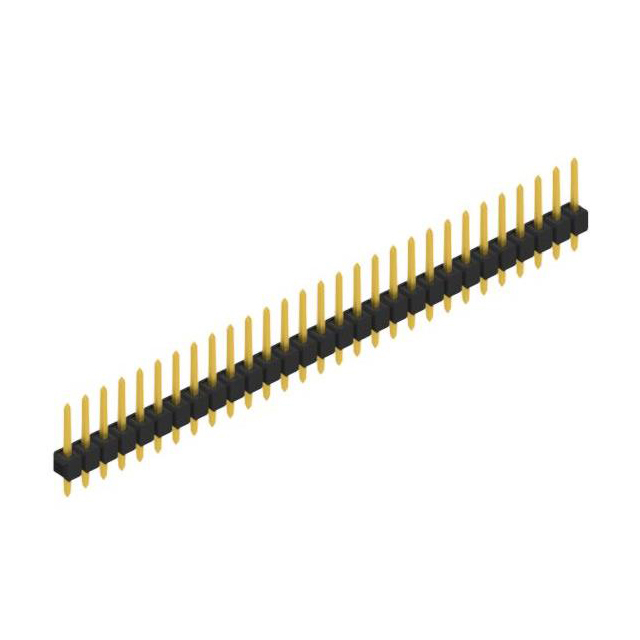

The SL 11 124 29 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 29 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper-tin alloy and finished with gold plating on the post section to ensure reliable electrical conductivity. The insulation material consists of polyamide (PA46), nylon 4/6, and glass filler, providing structural integrity. This component supports an operating temperature range of -40°C to +163°C and withstands soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Gold-plated contact posts for enhanced corrosion resistance and signal integrity
• Glass-filled polyamide insulation for mechanical stability in high-temperature environments

Headers, Male Pins Applications

• Industrial control systems requiring robust PCB interconnects
• Consumer electronics assemblies utilizing standard 2.54 mm spacing
• Automotive electronic modules needing high thermal tolerance connectors

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'G' corresponds to the gold-plated contact finish as documented in the official Fischer Elektronik datasheet. Confirm that the 29-position count matches the required circuit design before procurement. Ensure compatibility with standard through-hole assembly processes given the specified thermal limits. Cross-reference the part number against the latest manufacturer catalog to confirm current availability and manufacturing status.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required for 2.54 mm pitch applications. The glass-filled PA46 insulation makes it suitable for environments exceeding standard nylon temperature ratings. Consider the 29-position length for space constraints on the target PCB layout. Ensure mating connectors align with the 0.100 inch spacing specification to maintain proper engagement.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of precision-engineered electronic components from Fischer Elektronik. The series is characterized by compact designs and reliable connection capabilities. The SL 11 124 29 G specifically denotes the 29-position variant within this family, maintaining consistent dimensional and electrical standards across the series while varying only in contact count.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical specifications regarding pitch, position count, contact finish, and insulation material. Verify mechanical fit and electrical rating compatibility if considering alternative manufacturers.
