SL 11 124 29 S

Headers, Male Pins Overview

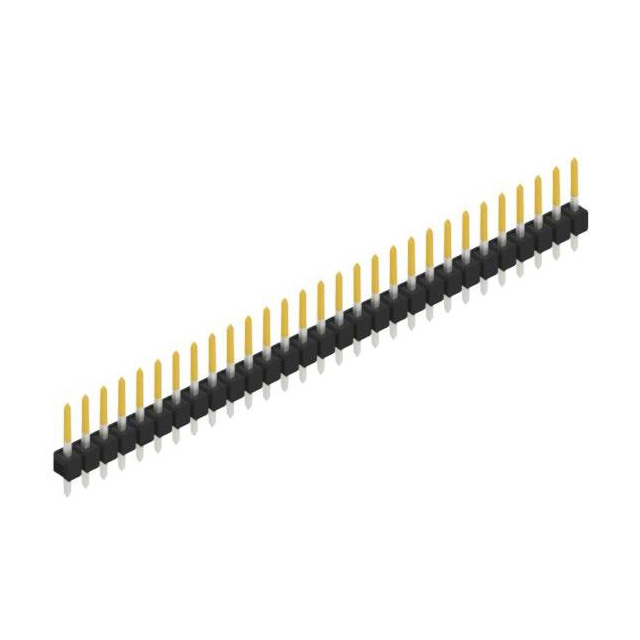

The SL 11 124 29 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and accommodates 29 contacts in a through-hole straight configuration. The connector utilizes a CuSn alloy contact material with gold plating to ensure reliable signal transmission. Designed for board-to-board or wire-to-board applications, it offers a nominal voltage rating of 250 V AC and a current rating of 3 A. The insulating body is constructed from PA 4.6 material, providing thermal stability and mechanical durability for standard electronic assembly processes.

Headers, Male Pins Feature Summary

• Single row male header design for compact circuit integration
• Gold-plated CuSn alloy contacts for corrosion resistance
• Through-hole termination method for secure PCB mounting
• PA 4.6 insulating body for thermal performance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's datasheet to confirm the exact contact finish thickness and insulation height specifications. Ensure that the required current and voltage ratings align with the system's operational demands. Confirm compatibility with standard reflow soldering profiles if applicable. Cross-reference the 29-position count with the target PCB footprint to guarantee precise mechanical fit and electrical connectivity without modification.

Headers, Male Pins Selection Notes

Select this component when a single-row, 0.635 mm pitch male header is required for through-hole mounting. The gold-plated contacts are suitable for environments requiring high reliability and low contact resistance. Consider the 3 A current rating and 250 V AC voltage limit during system design. This connector is appropriate for applications where space efficiency and robust mechanical connection are prioritized over shrouded designs.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic connectors from Fischer Elektronik. The series includes various configurations with different contact counts and pitch options. The SL 11 124 variant specifically denotes a single-row male header with a 0.635 mm pitch. These connectors are designed for use in industrial and commercial electronics, offering a balance of performance and cost-effectiveness for standard interconnection needs.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and electrical ratings before considering alternative manufacturers. Contact Fischer Elektronik directly for official cross-reference information or approved replacement components.
