SL 11 124 29 Z

Headers, Male Pins Overview

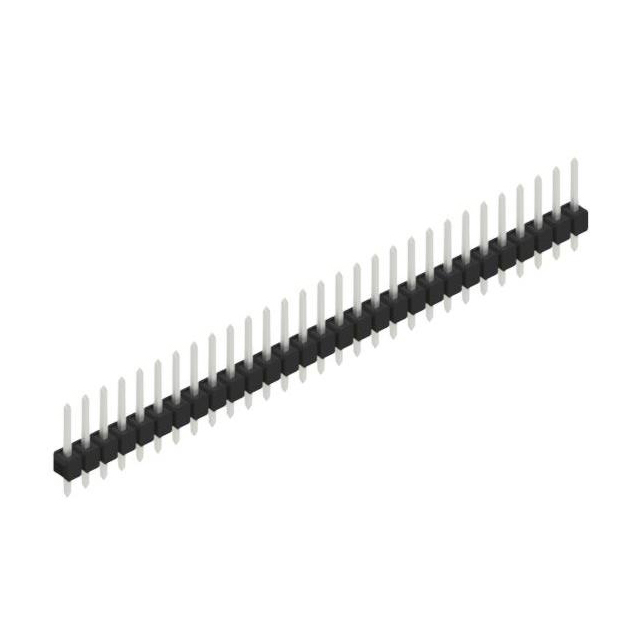

The SL 11 124 29 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 29 positions. The connector utilizes a through-hole mounting style with straight pins designed for board-to-board or wire-to-board connections. Contact materials consist of copper alloy, finished with tin plating to ensure reliable conductivity and corrosion resistance. The insulating housing is constructed from polyamide (PA46), providing mechanical stability and thermal endurance suitable for standard electronic assembly processes.

Headers, Male Pins Feature Summary

• Single row configuration with precision 0.635 mm spacing
• Through-hole straight pin design for secure PCB mounting
• Tin-plated contacts on copper alloy base material
• Polyamide insulation housing for structural integrity

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronics
• Wire-to-board connections requiring precise alignment
• Industrial control modules with space constraints
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact pin count and plating specifications. Ensure compatibility with mating connectors regarding pitch tolerance and contact length. Check for RoHS compliance status if required by your manufacturing standards. Confirm that the through-hole footprint matches your PCB design guidelines before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row header with fine 0.635 mm pitch is required for high-density applications. Consider the 29-position capacity relative to available board space. Evaluate the tin plating suitability for your environmental conditions and soldering profile. Compare against alternative series if different contact lengths or insulation heights are necessary for your specific mechanical stack-up requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of precision pin headers from Fischer Elektronik. The series is characterized by its fine pitch and robust construction for demanding electronic environments. Similar parts in the series vary primarily by the number of positions, indicated by the numerical segment in the model number, while maintaining consistent pitch and mounting characteristics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 29 positions, and through-hole straight form factor. Verify that any replacement maintains identical contact material and plating thickness to ensure electrical continuity. Cross-reference with Fischer Elektronik's official substitution guide for approved equivalents.
