SL 11 124 30 Z

Headers, Male Pins Overview

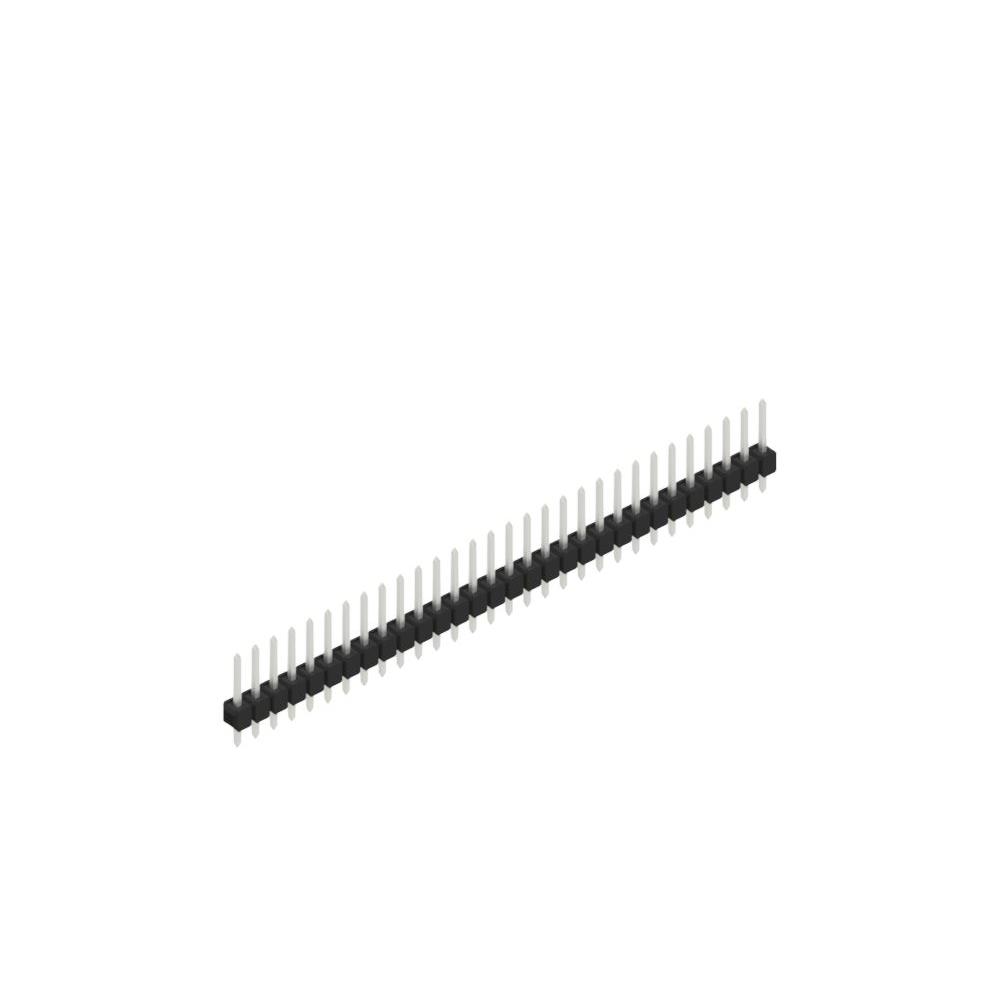

The SL 11 124 30 Z is a single-row, through-hole pin header connector manufactured by Fischer Elektronik. It features 30 positions with a 0.635 mm (0.025 inch) mating pitch and a 2.54 mm (0.100 inch) column pitch. The connector utilizes square male pins made of copper-tin alloy, finished with a 4.00 µm gold plating on the mating section. Designed for board-to-board or cable connections, it offers a total contact length of 11.20 mm, with a 5.40 mm mating length and a 3.00 mm column length. The housing is constructed from PA46 nylon insulation.

Headers, Male Pins Feature Summary

• Precision 0.635 mm mating pitch ensures reliable signal integrity in high-density applications.
• Gold-plated contacts provide superior corrosion resistance and stable electrical conductivity.
• Square pin geometry enhances mechanical stability and prevents rotational misalignment during assembly.

Headers, Male Pins Applications

• High-density electronic assemblies requiring precise alignment
• Industrial control systems and instrumentation
• Automotive electronics and sensor interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact contact finish and packaging configuration. Ensure compatibility with mating connectors regarding the 0.635 mm pitch specification. Confirm that the through-hole mounting style aligns with the target PCB design requirements.

Headers, Male Pins Selection Notes

Select this component when a fine-pitch 0.635 mm header is required for robust signal transmission. The gold-plated contacts are suitable for environments where oxidation resistance is critical. Verify that the 30-position count matches the circuit design needs before finalizing the selection.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which specializes in precision pin headers. The series is characterized by its fine 0.635 mm pitch, catering to applications demanding compact layouts and high connection density. The SL 11 series is widely used in professional electronics manufacturing.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
