SL 11 124 31 G

Headers, Male Pins Overview

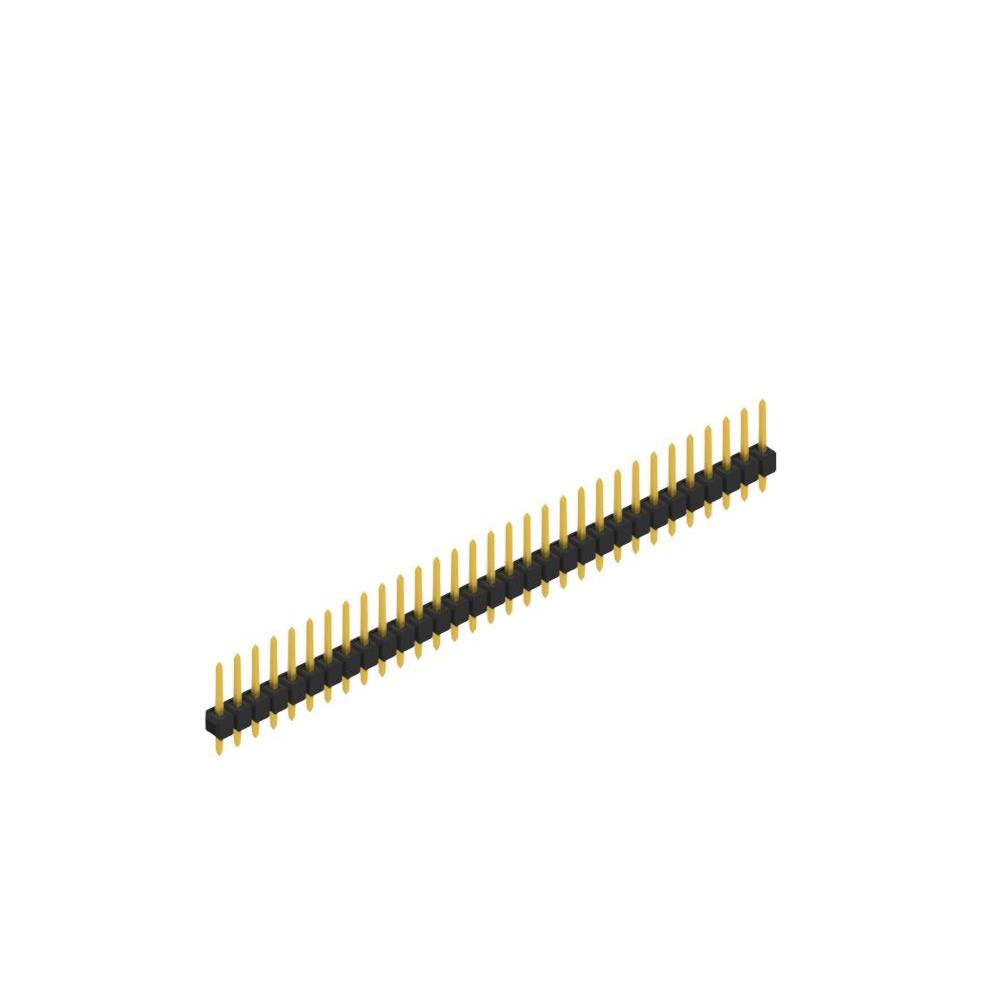

The SL 11 124 31 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and accommodates 31 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating on the mating surface. The insulating body is constructed from polyamide (PA46). This component is designed for reliable electrical interconnection in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct board insertion
• Through-hole soldering method ensures mechanical stability
• Polyamide insulating body provides thermal resistance
• Tin-plated contacts offer corrosion protection

Headers, Male Pins Applications

• General-purpose PCB interconnects
• Signal routing in control panels
• Prototype development boards
• Industrial equipment wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the required contact count matches the 31-position variant exactly. Cross-reference the package dimensions with the target PCB footprint to guarantee compatibility during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the 31-position capacity for signal density needs. Evaluate the tin-plated contact finish for general environmental conditions rather than high-wear cycling scenarios. Confirm that the PA46 insulation rating meets the operational temperature requirements of the end device.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of male headers. The series offers various contact counts ranging from 1 to 36 positions within a single row. The SL 11 124 31 G represents a mid-range position count option within this standardized product line, sharing common dimensional and material characteristics with adjacent variants.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 31 positions. Verify that alternative sources maintain the same through-hole termination style and polyamide insulation material to ensure mechanical and thermal compatibility.
