SL 11 124 31 Z

Headers, Male Pins Overview

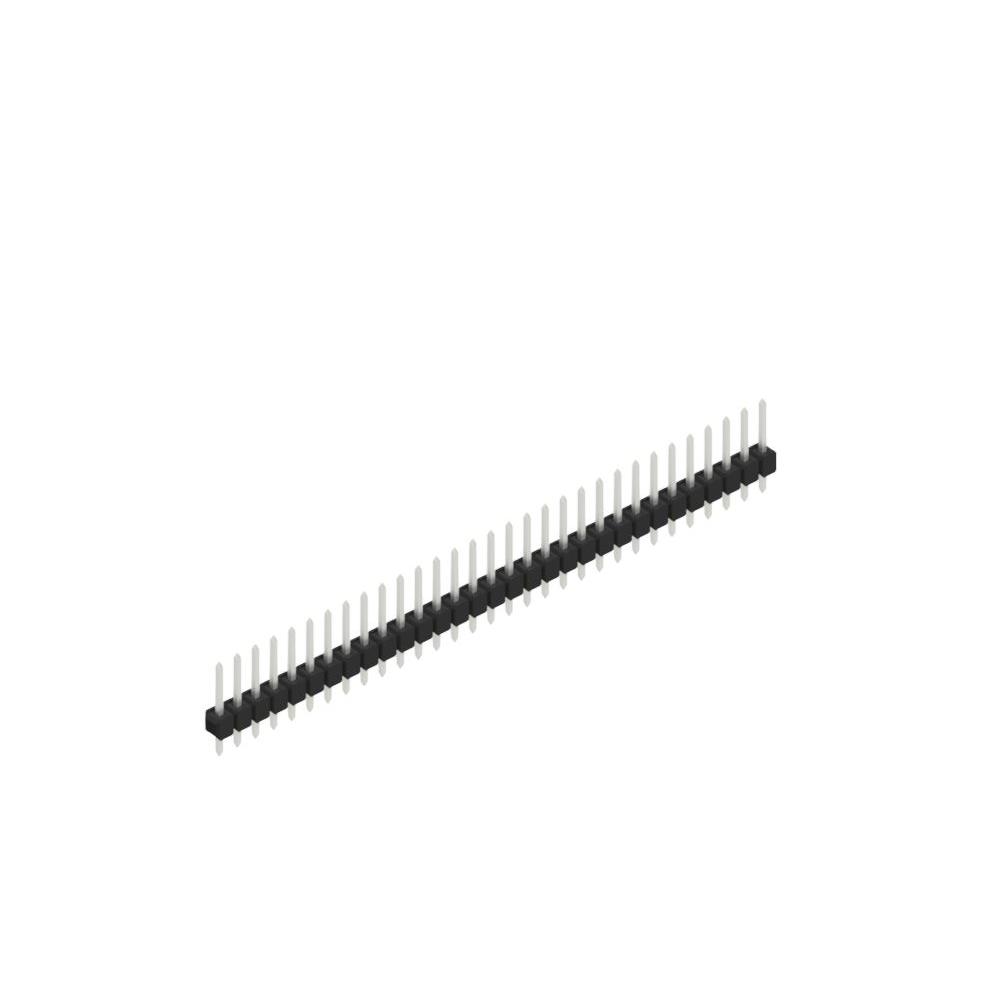

The SL 11 124 31 Z is a male header connector from Fischer Elektronik, designed for through-hole mounting. It features a single row with 31 positions and a contact pitch of 0.100 inches (2.54 mm). The contacts have a cross-section of 0.635 mm and are made of copper-tin alloy. The mating surface is tin-plated with a thickness of 157.5 µin (4.00 µm), while the tail surface is also tin-plated. The connector utilizes polyamide (PA46) insulation and has an overall contact length of 0.441 inches (11.20 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board interconnection.
• Through-hole soldering termination method for secure PCB attachment.
• Tin-plated contact surfaces to ensure reliable electrical conductivity.

Headers, Male Pins Applications

• General purpose electronic circuit assembly.
• Industrial control panel wiring.
• Consumer electronics housing connections.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating specifications and availability status. Ensure the selected variant matches the required 31-position count and 2.54 mm pitch for your design. Cross-reference the Fischer Elektronik part number directly with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when a single-row, 31-pin male header is required for through-hole applications. The 2.54 mm pitch ensures compatibility with standard PCB spacing. Verify that the tin-plated contacts meet the environmental and conductivity requirements of the target application compared to gold-plated alternatives in the same series.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various contact counts ranging from 1 to 36 positions with a consistent 2.54 mm grid. These connectors are characterized by their precision engineering and use of PA46 insulation material for thermal stability.

Headers, Male Pins Replacement Considerations

Direct substitutes within the SL 11 series include parts with identical pitch and row count but different contact counts or plating options, such as SL 11 124 31 S. Verify mechanical dimensions and plating thickness before substitution.
