SL 11 124 32 G

Headers, Male Pins Overview

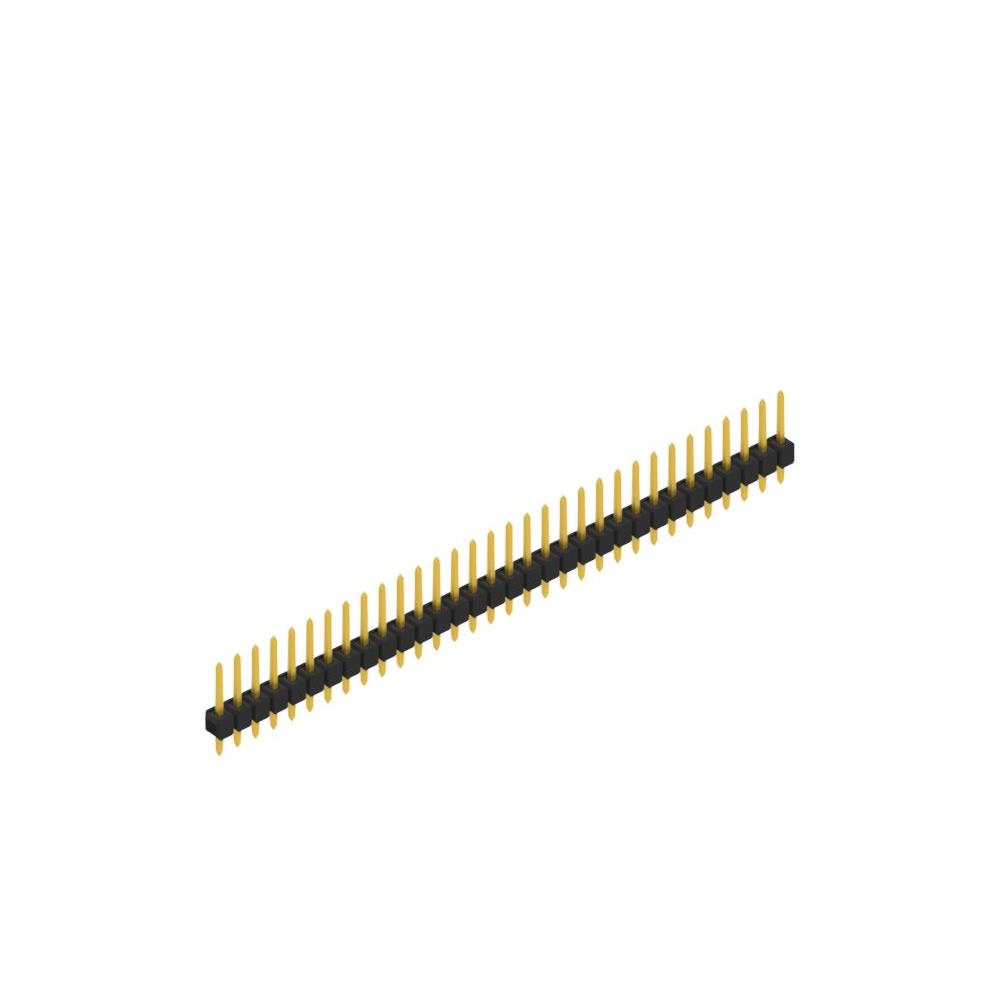

The SL 11 124 32 G is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row with 32 positions and a pitch of 0.635 mm (0.025 inches). The contacts are tin-plated copper alloy pins with a mating contact length of 5.40 mm and a column length of 3.00 mm. The total contact length measures 11.20 mm, while the insulation height is 2.80 mm. The connector utilizes PA46 nylon insulation material and square-shaped pin terminals.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact board-to-board or wire-to-board interconnections
• Through-hole mounting design ensuring secure mechanical attachment to printed circuit boards
• Tin-plated copper alloy contacts providing reliable conductivity and corrosion resistance
• PA46 nylon insulation material offering thermal stability and structural integrity

Headers, Male Pins Applications

• Precision electronic assembly requiring high-density interconnects
• Industrial control systems utilizing standard pin header interfaces
• Test and measurement equipment connecting modular components
• Embedded systems integrating sensor modules via through-hole headers

Headers, Male Pins Procurement Notes

Verify the exact part number SL 11 124 32 G against manufacturer datasheets to confirm pin count, pitch, and plating specifications. Ensure compatibility with mating female connectors regarding contact geometry and insulation height. Check for RoHS compliance status if required by project regulations. Confirm packaging type matches inventory handling requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 32-position male header with 0.635 mm pitch is required. Consider the through-hole mounting method and PA46 insulation material for environmental durability. Evaluate the tin-plated contact finish for solderability and long-term reliability in standard operating conditions. Compare physical dimensions against available PCB space constraints.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered male headers. The series offers various pin counts and configurations tailored for high-reliability applications. The SL 11 designation indicates specific dimensional standards within the product line, ensuring interchangeability with compatible mating connectors in industrial electronics assemblies.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with other manufacturers' 32-position, 0.635 mm pitch male headers based on mechanical dimensions and electrical ratings before substitution.
