SL 11 124 32 Z

Headers, Male Pins Overview

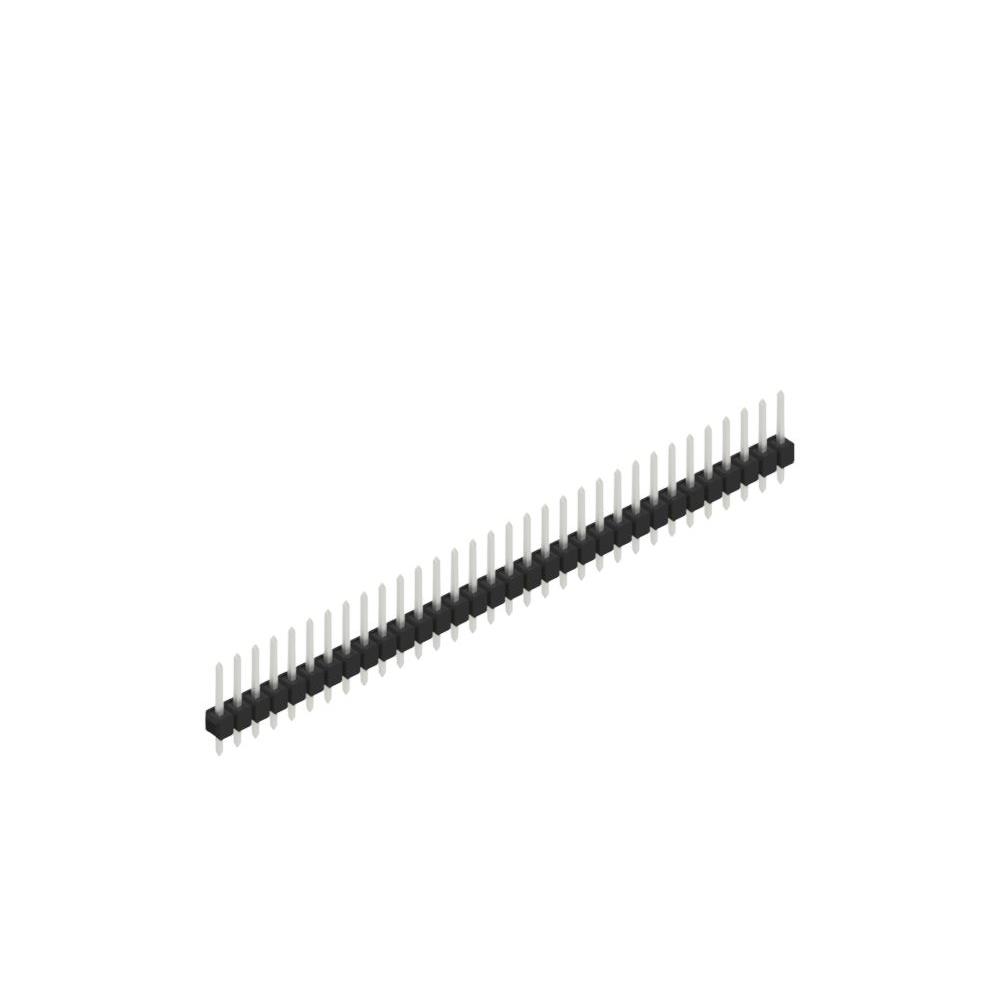

The SL 11 124 32 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are made of copper-tin alloy with tin plating, offering a mating contact length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm), while the insulation height is 0.110 inches (2.80 mm). The connector utilizes square-shaped pins and polyamide (PA46) insulation material.

Headers, Male Pins Feature Summary

• Single row configuration with 32 male pin positions
• Through-hole mounting design for printed circuit boards
• Tin-plated copper-tin alloy contacts for reliable conductivity
• Polyamide insulation material ensuring structural stability

Headers, Male Pins Applications

• General electronic interconnect systems
• Printed circuit board assembly
• Signal transmission modules

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 124 32 Z against official Fischer Elektronik documentation to confirm compatibility. Ensure that the required contact count, pitch, and mounting type match the design specifications. Check for any specific environmental ratings or material certifications if applicable to the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a 32-position single-row male header is required. Confirm that the 2.54 mm pitch aligns with the mating connector and PCB layout. Verify that the through-hole technology suits the manufacturing process and that the tin-plated contacts meet the electrical requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various configurations in terms of position count and contact arrangements. The SL 11 124 32 Z specifically provides a high-density option within the single-row male header category, suitable for applications requiring multiple connections in a compact footprint.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult Fischer Elektronik directly for cross-reference information or equivalent products within their portfolio.
