SL 11 124 33 G

Headers, Male Pins Overview

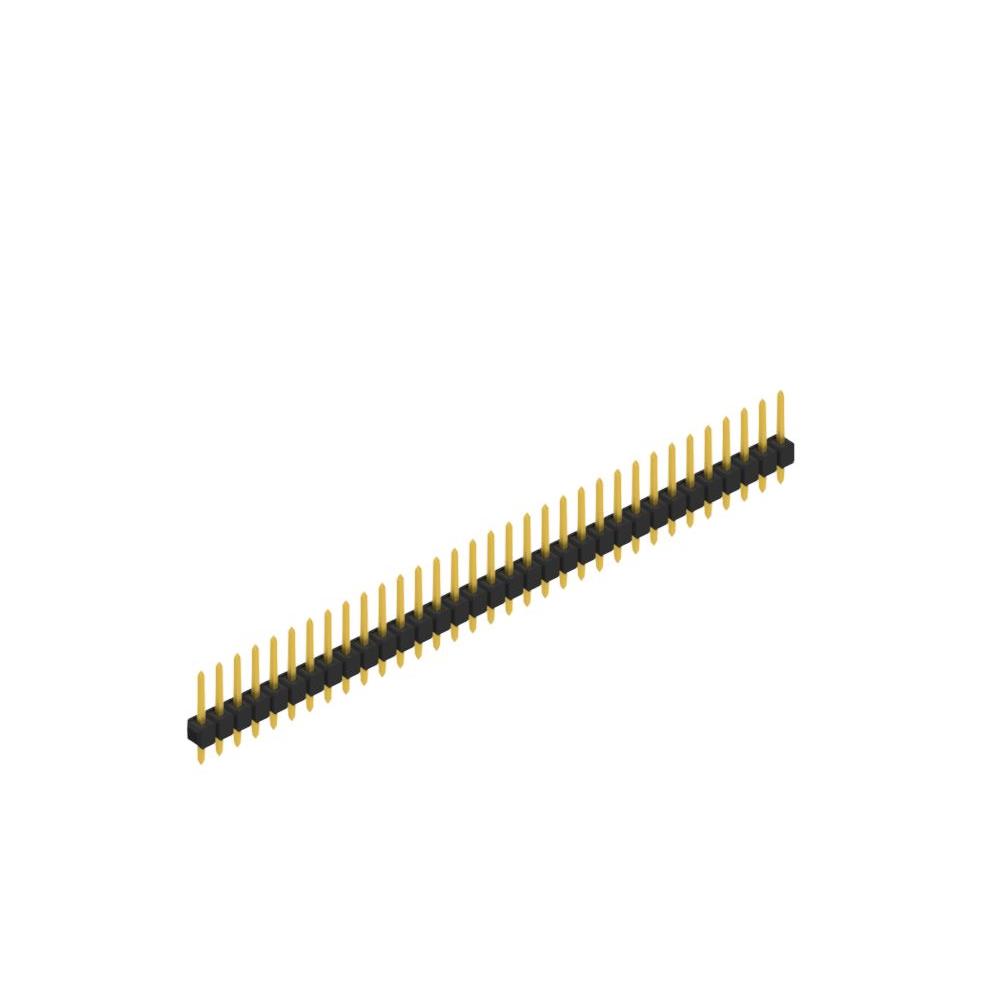

The SL 11 124 33 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch spacing and contains 33 positions. The connector utilizes gold plating on the contact surfaces, with a specified thickness of at least 0.2 micrometers. Designed for through-hole mounting, it supports board-to-board and wire-to-board interconnection systems. The component operates within a temperature range of -40°C to +163°C and withstands soldering conditions of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for reliable electrical interconnection
• Gold-plated contacts ensure corrosion resistance and stable signal transmission
• Through-hole mounting style provides secure mechanical attachment to PCBs

Headers, Male Pins Applications

• Board-to-board stacking connections
• Wire-to-board harness assembly
• General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm the gold plating specification and row count. Ensure compatibility with mating connectors regarding pitch and contact geometry. Check for RoHS compliance status in the latest datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position male header with gold contacts is required. The 2.54 mm pitch is standard for many legacy and modern designs. Consider the operating temperature range and soldering thermal limits during design integration.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of PCB connectors from Fischer Elektronik. The series offers various position counts and plating options. The 'G' suffix typically denotes gold plating in this manufacturer's nomenclature, distinguishing it from tin-plated variants.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, 33 positions, and single-row male configuration. Verify that alternative parts match the through-hole mounting requirements and gold contact specifications.
