SL 11 124 33 S

Headers, Male Pins Overview

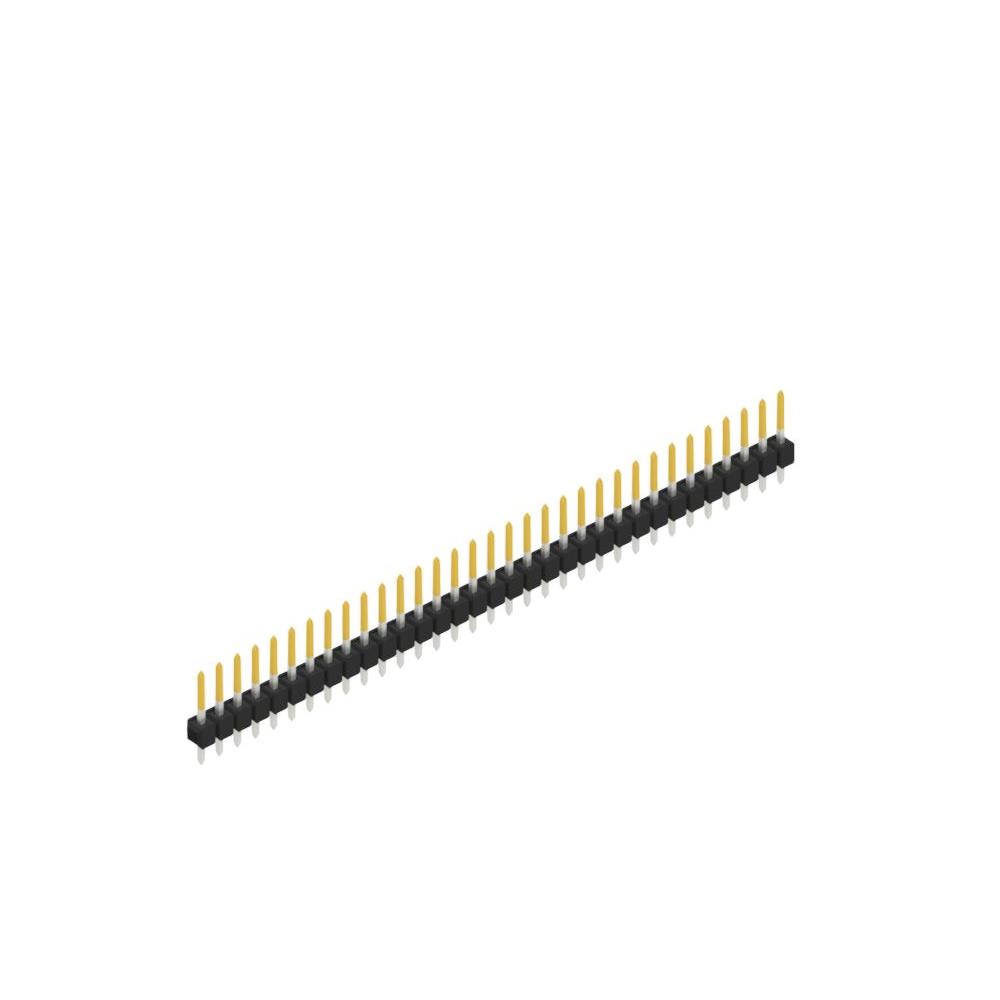

The SL 11 124 33 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 33 contacts designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped pins with tin plating to ensure reliable electrical connections. Constructed with polyamide insulation, this component supports standard surface mount processes and provides a secure mechanical interface for board-to-board or wire-to-board applications requiring high contact density.

Headers, Male Pins Feature Summary

• Single-row configuration with 33 positions for dense circuit integration
• Through-hole mounting design compatible with standard PCB fabrication
• Tin-plated square pins for consistent signal transmission
• Polyamide insulation material ensuring thermal stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly modules
• Industrial control panel interfaces
• Consumer electronics internal connectivity

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' corresponds to the required tin plating finish as per official datasheets. Confirm that the 33-position count matches the target circuit design requirements. Ensure the through-hole footprint aligns with the manufacturer's technical drawing dimensions before finalizing procurement orders to prevent assembly mismatches.

Headers, Male Pins Selection Notes

Select this model when a single-row male header with exactly 33 contacts is required. The 2.54 mm pitch is suitable for general-purpose digital and analog signals. Consider the polyamide insulation rating for environmental conditions. Compare against other series if higher current capacity or different plating materials are necessary for specific operational environments.

Headers, Male Pins Part Context

This component belongs to the SL 11 124 series of Fischer Elektronik headers. The series offers various contact counts and plating options. The SL 11 124 designation indicates the specific housing style and row configuration. This part represents a standard industrial-grade connector option within the broader Fischer Elektronik portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik parts in the SL 11 124 series with identical pitch and row count but different plating finishes, such as gold variants. Cross-manufacturer replacements require matching the 2.54 mm pitch, 33-pin count, and through-hole mounting profile to ensure mechanical compatibility.
