SL 11 124 33 Z

Headers, Male Pins Overview

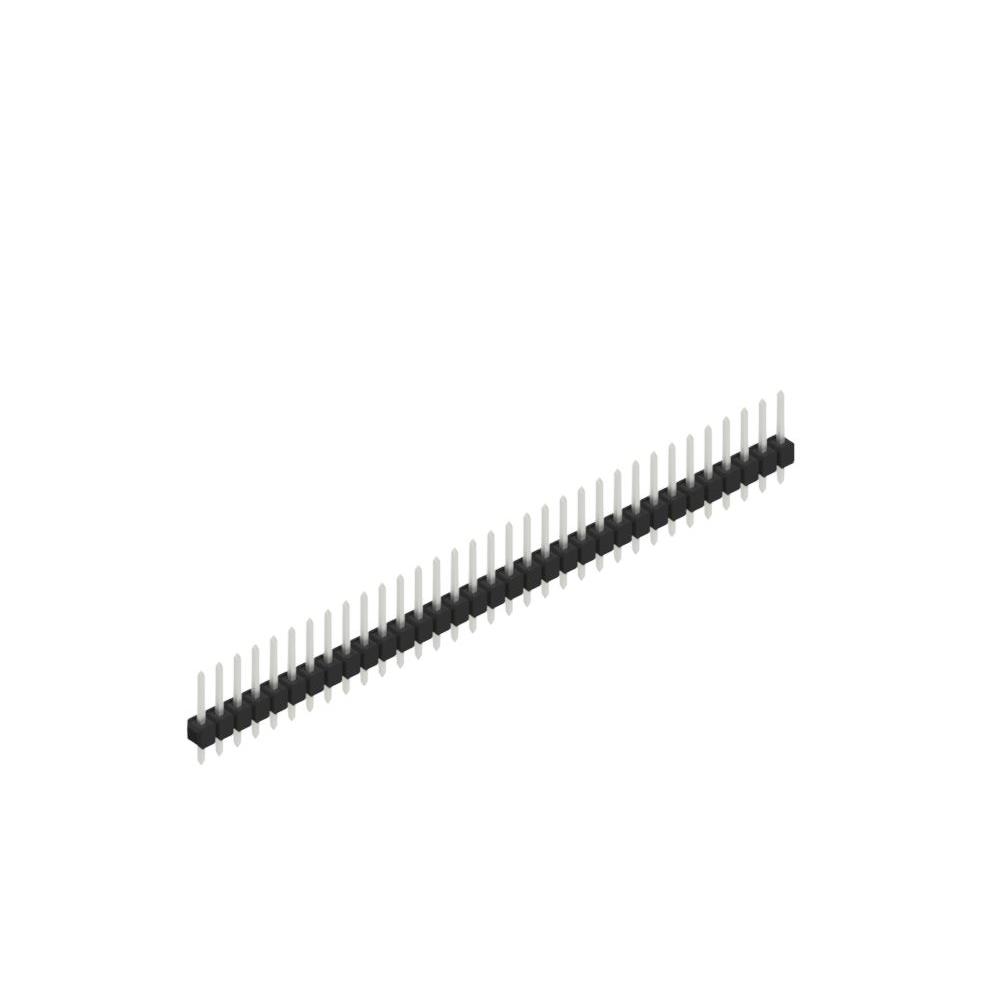

The SL 11 124 33 Z is a single-row male pin header connector from the Fischer Elektronik SL 11 series. It features 33 positions with a 0.100-inch (2.54 mm) pitch. The connector utilizes square contact pins made of copper-tin, plated with tin on both mating and post surfaces. The plating thickness for the mating surface is 157.5 µin (4.00 µm). The total contact length measures 0.441 inches (11.20 mm), comprising a 0.213-inch (5.40 mm) mating length and a 0.118-inch (3.00 mm) post length. The housing is constructed from polyamide (PA46) nylon, providing an insulation height of 0.110 inches (2.80 mm). This through-hole component is currently in active production.

Headers, Male Pins Feature Summary

• Single-row configuration with 33 positions for compact circuit board integration
• Square-shaped contact pins designed for secure mechanical retention
• Tin-plated copper-tin contacts ensuring reliable electrical conductivity
• Polyamide (PA46) insulation material for structural stability

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Through-hole PCB assembly
• Signal transmission modules
• Industrial control hardware

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 124 33 Z against official Fischer Elektronik documentation to confirm compatibility. Ensure that the required 33-position count and 2.54 mm pitch align with the target design. Cross-reference the tin plating specifications and PA46 insulation material requirements with system constraints. Confirm current availability status directly with authorized distributors or the manufacturer before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-pin male header is required for through-hole mounting. The 2.54 mm pitch suits standard breadboard-compatible or general PCB layouts. Consider the square pin profile for enhanced mechanical locking within the socket. Verify that the operating temperature range and environmental conditions are compatible with the polyamide insulation and tin-plated contacts specified for this series.

Headers, Male Pins Part Context

This connector belongs to the Fischer Elektronik SL 11 series, which comprises precision-engineered male pin headers. The series offers various position counts while maintaining a consistent 2.54 mm pitch and 0.635 mm pin diameter. These components are designed for reliable signal transmission in compact electronic assemblies, utilizing durable materials and standardized dimensions for broad interoperability across different manufacturing applications.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. When evaluating alternatives, ensure that any replacement matches the 33-position count, 2.54 mm pitch, single-row layout, and through-hole mounting style. Verify that the substitute maintains equivalent contact material, plating thickness, and insulation properties to guarantee functional compatibility.
