SL 11 124 34 G

Headers, Male Pins Overview

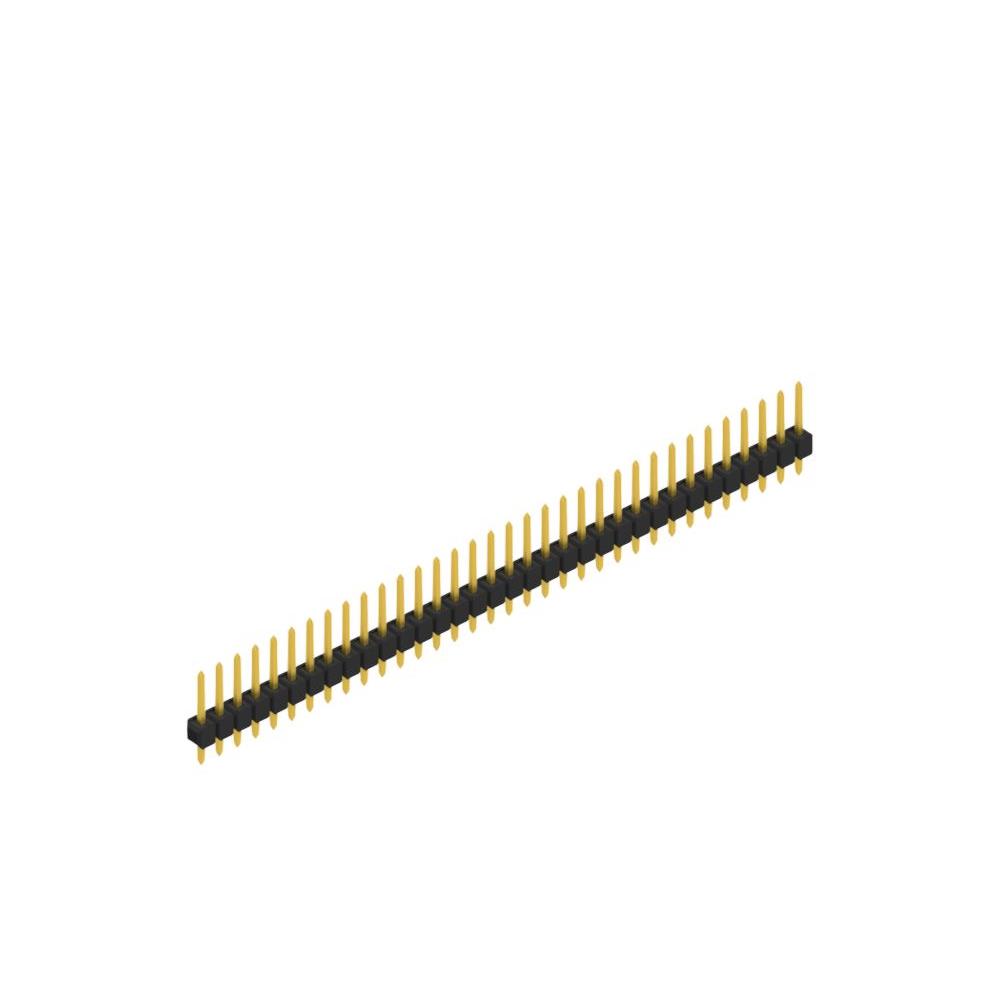

The SL 11 124 34 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 34 contacts and a pitch of 0.100 inches (2.54 mm). The contact cross-section is square, measuring 0.635 mm. The connector utilizes through-hole termination for PCB mounting. Contact plating consists of nickel underplating with a minimum gold thickness of 0.2 micrometers on the mating surface. The insulating body is black polyamide. The overall pin length is 1.142 inches (29.000 mm), with a mating length of 0.433 inches (11.000 mm) and a tail length of 0.130 inches (3.300 mm).

Headers, Male Pins Feature Summary

• Single-row male header configuration with square contact cross-sections.
• Through-hole mounting design for secure PCB integration.
• Gold-plated contacts ensuring reliable signal transmission.
• Black polyamide insulation providing structural stability.

Headers, Male Pins Applications

• Board-to-board interconnections requiring precise alignment.
• Wire-to-board connections in compact electronic assemblies.
• Industrial control systems utilizing standard 2.54 mm spacing.
• Test and measurement equipment interfaces.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the contact plating specification. The 'G' suffix indicates gold plating, which differs from tin-plated variants. Ensure the required contact count matches the 34-position configuration. Confirm that the through-hole mounting style aligns with the target PCB layout. Check for any additional mechanical constraints regarding the overall height and stack-up requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the total pin length for adequate board clearance. Verify that the square contact shape meets the mating interface specifications. Evaluate the thermal resistance against soldering process requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components. The series offers various contact counts and plating options. Fischer Elektronik designs these headers for reliable performance in demanding environments. The product line emphasizes compactness and electrical stability. This specific model provides a balanced solution for high-density interconnect applications.
