SL 11 124 34 S

Headers, Male Pins Overview

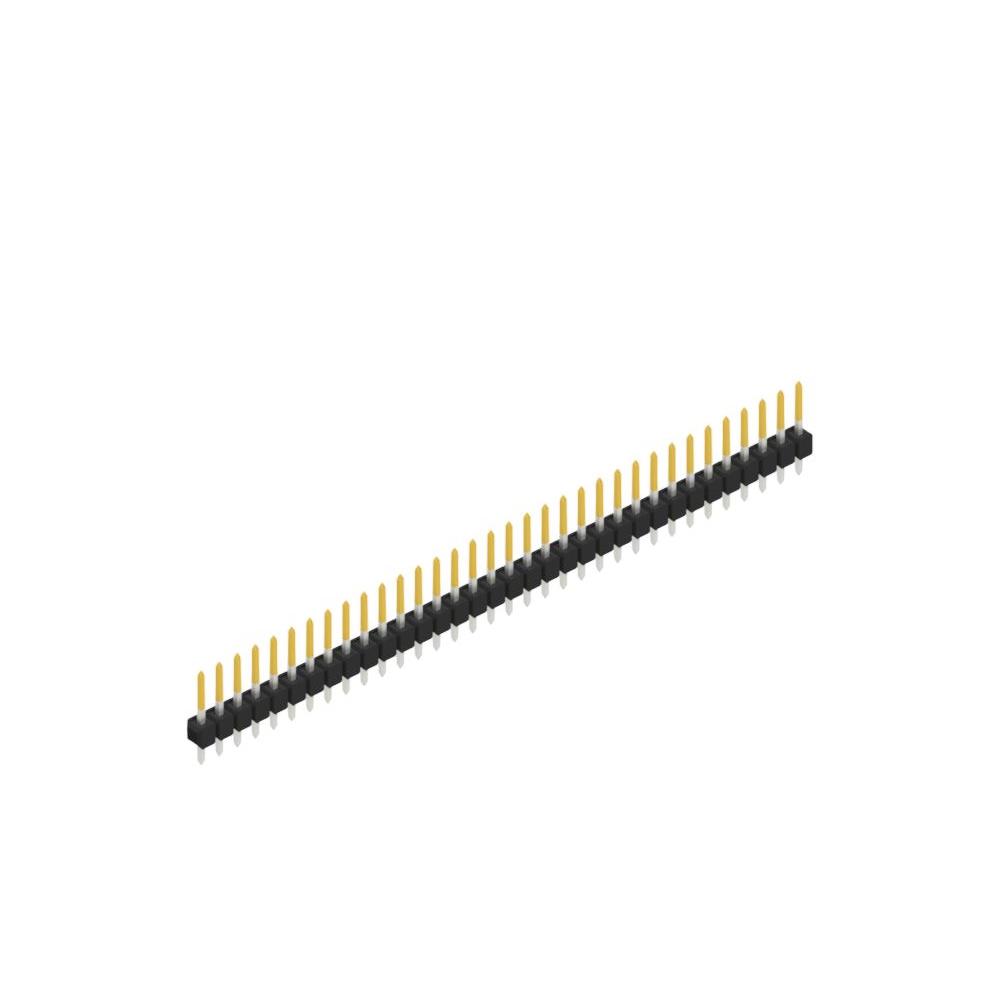

The SL 11 124 34 S is a surface-mount male header connector from Fischer Elektronik. It features a 0.635 mm pitch and contains 34 positions arranged in a single row. The contacts are made of CuSn alloy with selective gold plating, while the termination pins are tin-plated for soldering. The insulating body is constructed from PA46 (Nylon 4/6) reinforced with glass fiber, rated for operation between -40°C and +163°C. This component utilizes a push-pull locking mechanism to ensure secure mating.

Headers, Male Pins Feature Summary

• Surface-mount design with 0.635 mm precision pitch
• Selective gold plating on contact areas for reliable conductivity
• Glass-fiber reinforced PA46 insulation for thermal stability
• Push-pull locking system for secure board attachment

Headers, Male Pins Applications

• High-density PCB interconnections
• Industrial control modules
• Precision instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates the surface-mount variant and confirm the pin count matches the required 34 positions. Ensure compatibility with the mating female connector's locking mechanism and verify that the operating temperature range meets the environmental requirements of the target application.

Headers, Male Pins Selection Notes

Select this component when a compact, high-reliability connection is needed for dense circuit layouts. The 0.635 mm pitch allows for significant pin density within a small footprint. Consider the push-pull locking feature if vibration resistance is critical, and ensure the PCB layout supports the specified surface-mount termination style.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors by Fischer Elektronik. The series offers various configurations including different pin counts and mounting styles. The SL 11 124 34 S specifically addresses applications requiring a single-row, surface-mount solution with robust mechanical locking and high-temperature performance capabilities.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 34-pin count, and surface-mount form factor. Verify that any alternative maintains the same push-pull locking interface and compatible contact dimensions to ensure proper mechanical and electrical integration.
