SL 11 124 34 Z

Headers, Male Pins Overview

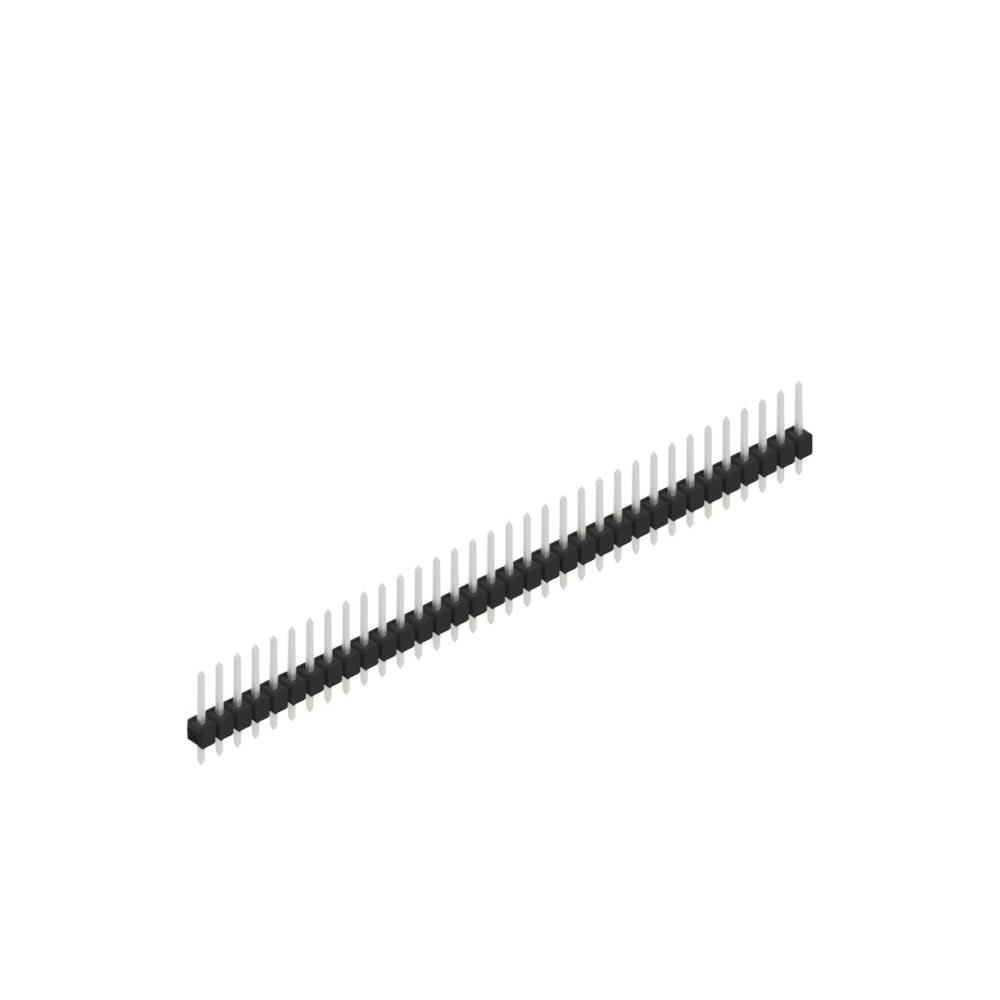

The SL 11 124 34 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 36 positions. The contacts are constructed from copper-tin alloy with selective gold plating, providing a mating contact length of 5.40 mm and a post length of 3.00 mm. The total contact length measures 11.20 mm. Insulation is provided by glass-filled polyamide (PA46), rated UL 94 V-0. The connector supports through-hole termination and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male header design for compact PCB integration
• Selective gold-plated copper-tin alloy contacts for reliable conductivity
• Glass-filled polyamide insulation with UL 94 V-0 flammability rating
• Precision 0.635 mm pitch ensuring consistent alignment

Headers, Male Pins Applications

• High-density electronic circuit board interconnections
• Industrial control system signal routing
• Test and measurement equipment interfaces
• Automotive electronics modules requiring thermal stability

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact finish specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check insulation material ratings against operational environmental conditions. Confirm through-hole mounting requirements align with PCB fabrication capabilities. Validate electrical ratings including voltage and current limits for the intended application.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pitch is required. Consider the 36-position count for channel density needs. Evaluate the gold-plated contacts for corrosion resistance in demanding environments. Assess the PA46 insulation for high-temperature performance up to 163°C. Ensure the through-hole format matches the assembly process constraints.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series of PCB headers from Fischer Elektronik. The series offers various pin counts and configurations for different connectivity needs. The SL 11 124 34 Z specifically provides a 36-position option with gold-plated contacts. It is designed for robust mechanical and electrical performance in professional electronic assemblies.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs before considering alternative components. Contact the manufacturer for potential equivalent parts if supply issues arise.
