SL 11 124 35 Z

Headers, Male Pins Overview

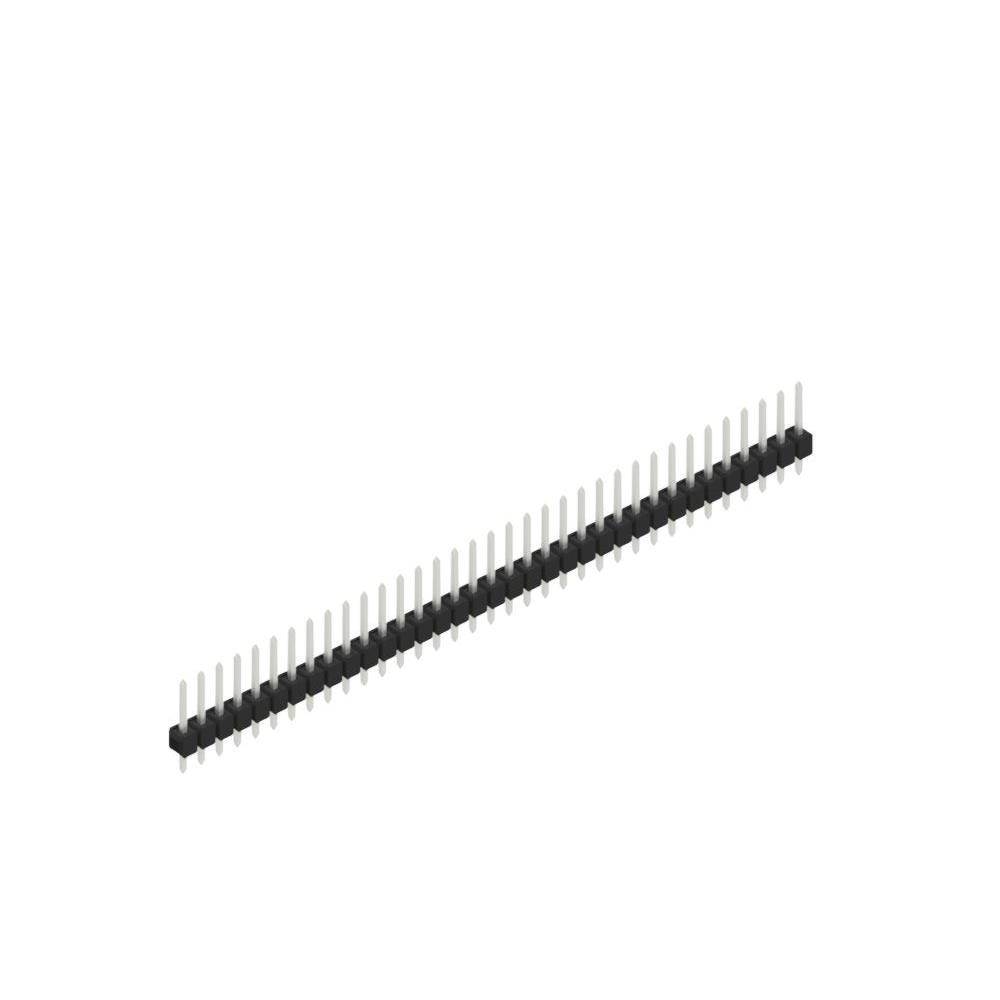

The SL 11 124 35 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and contains 35 positions. The connector utilizes through-hole termination for PCB mounting. Contact plating is tin, with a specified thickness of 157.5 µin (4.00 µm). The insulating material is polyamide (PA46), rated for operating temperatures between -40°C and +163°C. The overall contact length is 11.20 mm, with a mating contact length of 5.40 mm and a post contact length of 3.00 mm.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for reliable through-hole PCB integration
• Tin-plated contacts ensure corrosion resistance and stable electrical conductivity
• Polyamide insulation provides thermal stability within a wide operating temperature range

Headers, Male Pins Applications

• Industrial control system interconnections
• Precision instrumentation signal routing
• Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating specifications and packaging details. Ensure the 35-position count matches the design requirement, as slight variations in part numbering may indicate different contact counts or plating options within the same series. Cross-reference the PA46 insulation rating with thermal requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 0.635 mm pitch header is required for high-density applications. The tin plating offers a cost-effective solution for general-purpose connections. Verify that the 3A rated current and 250V rated voltage align with the circuit's electrical load. Consider the through-hole mounting style if surface-mount alternatives are not suitable for the mechanical stress environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of precision-engineered connectors from Fischer Elektronik. The series is characterized by its compact design and consistent 0.635 mm pitch, suitable for demanding industrial environments. Similar parts in the series vary primarily by the number of positions and specific plating configurations, such as gold or nickel variants.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers within the SL 11 124 series with matching position counts, such as SL 11 124 36 Z or SL 11 124 32 Z, provided the pin count difference is acceptable. Generic equivalents must match the 0.635 mm pitch, single-row format, and through-hole termination type.
