SL 11 124 36 G

Headers, Male Pins Overview

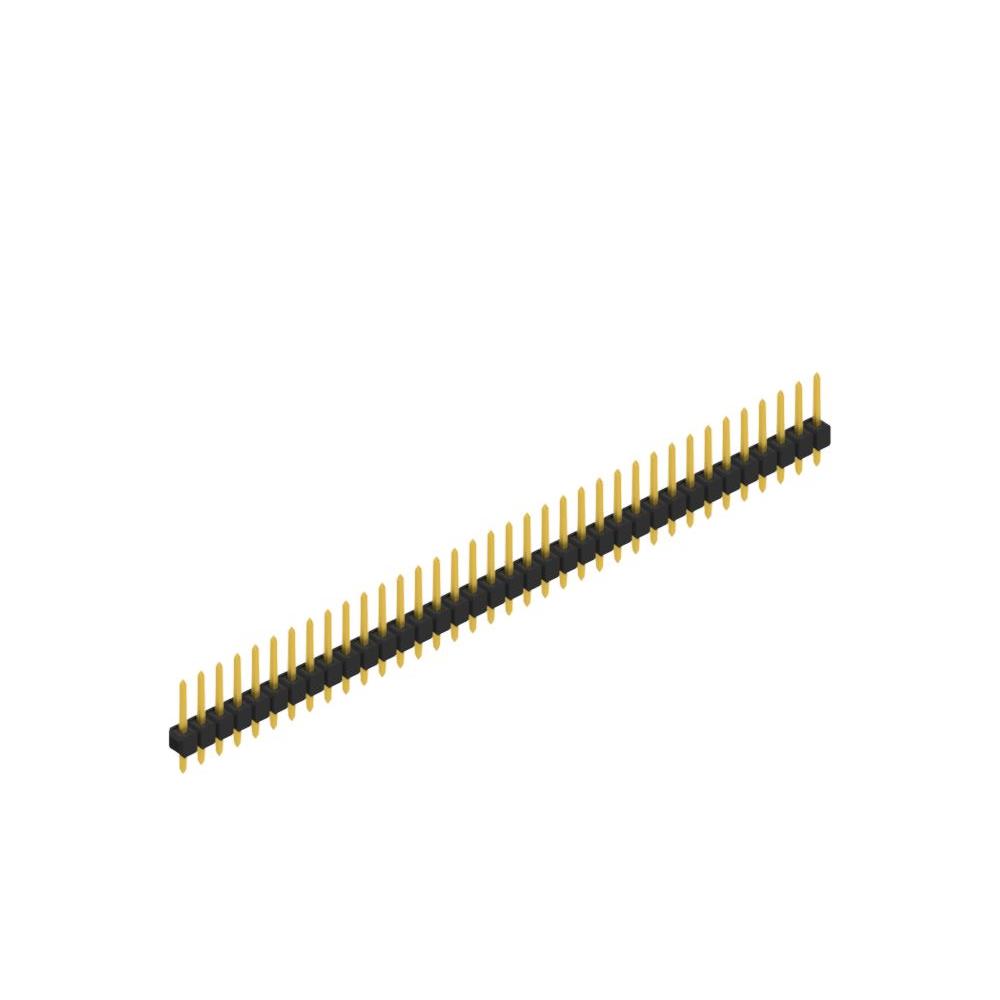

The Fischer Elektronik SL 11 124 36 G is a single-row male pin header connector designed for through-hole PCB mounting. It features 36 contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes square-shaped pins made of copper-tin alloy, plated with nickel and gold (Ni+≥0.2µm Au). Key dimensions include a mating contact length of 0.213 inches (5.40mm), a post length of 0.118 inches (3.00mm), and an insulation height of 0.110 inches (2.80mm). The total contact length measures 0.441 inches (11.20mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnections.
• Gold-plated contacts ensure reliable conductivity and corrosion resistance in demanding environments.
• Precision-engineered polyamide insulation provides structural stability and thermal resilience.
• Through-hole mounting design ensures secure mechanical attachment to printed circuit boards.

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission.
• Test and measurement equipment interfaces.
• Consumer electronics assembly with high-density connection needs.
• Automotive electronic modules needing reliable electrical pathways.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the Ni+Au plating variant rather than other finish options like tin. Confirm that the 36-position count matches the required circuit density. Ensure the through-hole footprint aligns with the PCB layout specifications. Check for any RoHS compliance documentation if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54mm pitch male header is required for permanent PCB integration. The gold plating makes it suitable for applications where low contact resistance and long-term reliability are critical. Consider the physical height constraints as the total contact length exceeds standard low-profile headers. Evaluate thermal requirements against the specified operating temperature range before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of precision connectors from Fischer Elektronik. The series is characterized by its compact design and consistent 2.54mm pitch across various position counts. These headers are engineered for high-quality electronic assemblies, offering a balance between mechanical strength and electrical performance. The specific model denotes the 36-contact variant within this standardized family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 36-position count, 2.54mm pitch, and gold-plated male pin configuration. Generic equivalents may differ in insulation material or contact length, potentially affecting fitment. Verify that alternative parts support the same through-hole mounting method and meet identical thermal and electrical standards.
