SL 11 124 36 S

Headers, Male Pins Overview

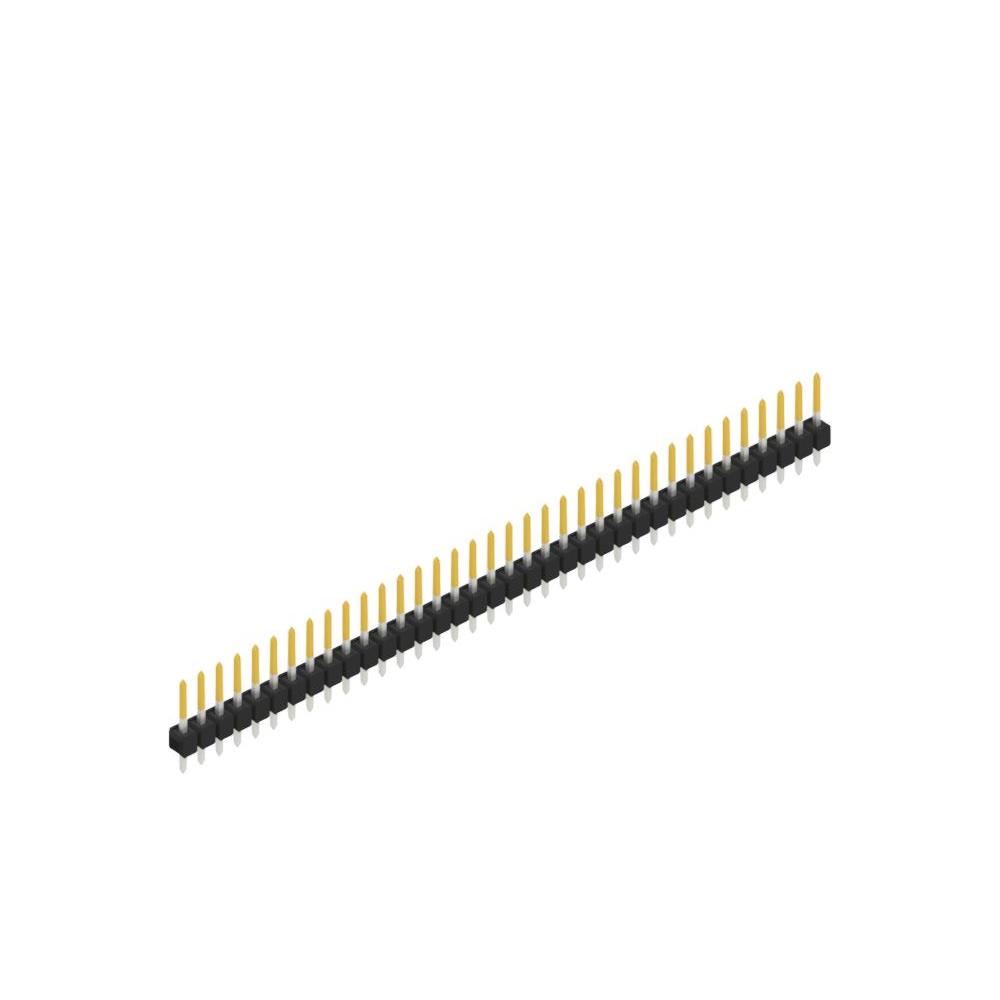

The SL 11 124 36 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm pitch and accommodates 36 contacts. The connector utilizes tin-plated copper-tin terminals with a mating contact length of 5.40 mm and a column length of 3.00 mm. Total contact length measures 11.20 mm, while the insulation height is 2.80 mm. The housing is constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact PCB integration.
• Precision-engineered design ensuring reliable electrical connections.
• Tin-plated terminals provide corrosion resistance and conductivity.

Headers, Male Pins Applications

• General-purpose board-to-board interconnects.
• Industrial control system signal routing.
• Electronic device internal wiring harnesses.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm terminal plating specifications. Ensure compatibility with mating connectors regarding pitch and row count. Confirm RoHS compliance status if required for your assembly process. Cross-reference the part number with official Fischer Elektronik documentation to avoid substitution errors.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required. The 36-contact capacity suits applications needing dense signal routing in limited space. Verify that the mating connector matches the 0.635 mm pitch specification. Consider the PA46 insulation material properties for thermal and mechanical stability during soldering.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various contact counts and pitch options. The SL 11 124 variant specifically denotes the single-row configuration. This model provides a standardized solution for electronic assemblies requiring precise alignment and durable connections.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical compatibility before considering alternative manufacturers or series. Contact Fischer Elektronik directly for approved cross-reference information.
