SL 11 124 36 Z

Headers, Male Pins Overview

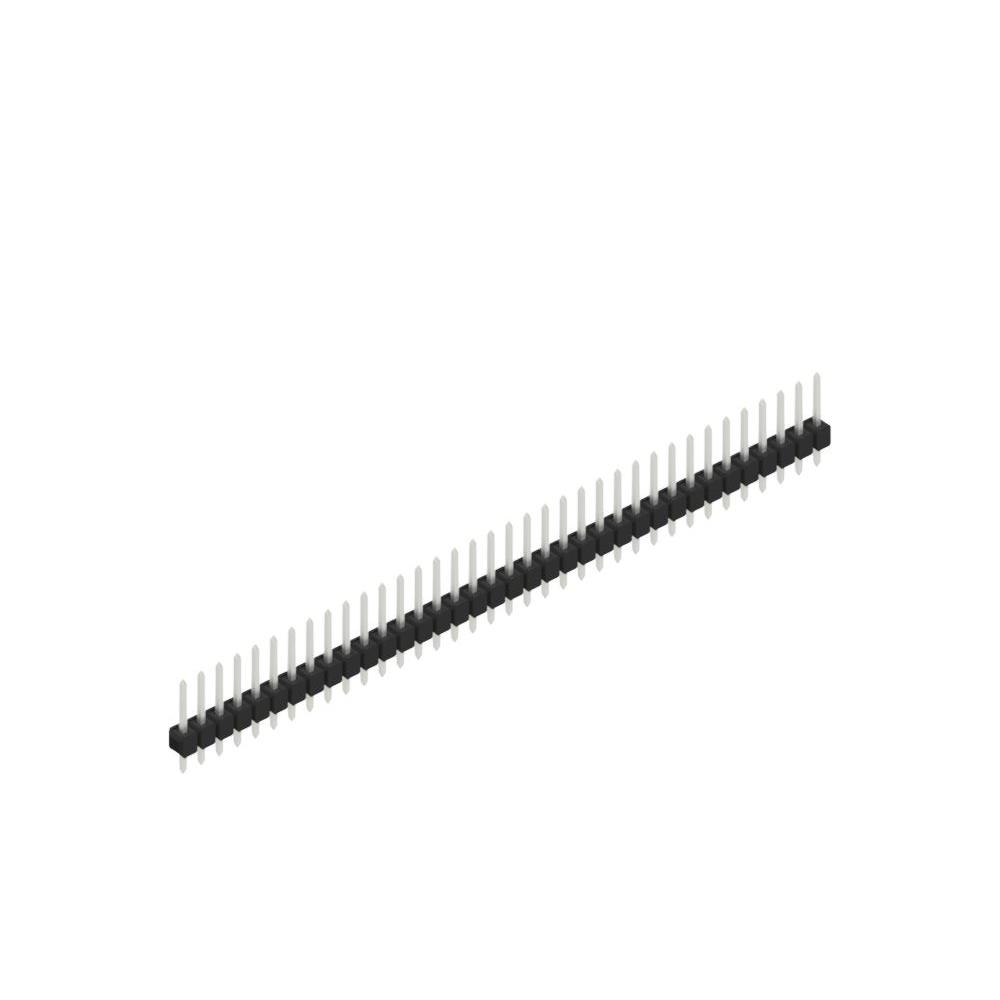

The SL 11 124 36 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 36 contacts in a through-hole mounting configuration. The connector utilizes a polyamide (PA46) insulating body and copper-tin alloy contacts with a tin plating finish. Key dimensions include an overall length of 11.20 mm, an insulation height of 2.80 mm, and a mating contact length of 5.40 mm. The component is designed for board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row male pin header design for standard PCB mounting
• Precision 0.635 mm contact pitch for dense signal routing
• Through-hole termination method ensuring mechanical stability
• Tin-plated copper-tin alloy contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• General-purpose electronic circuit integration
• Industrial control unit signal transmission

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating specification, as variations such as 'Z' denote tin plating while other suffixes may indicate gold or nickel finishes. Ensure the selected part matches the required row count and contact quantity for the target application. Confirm that the through-hole package style aligns with the printed circuit board layout and manufacturing capabilities. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required for high-density applications. The 36-contact configuration supports extensive signal routing within a compact footprint. The through-hole technology offers robust mechanical retention compared to surface-mount alternatives. Consider the operating temperature range and voltage ratings specified in the official datasheet to ensure compatibility with the system's electrical environment and thermal conditions.

Headers, Male Pins Part Context

This component belongs to the SL 11 124 series of precision-engineered PCB connectors from Fischer Elektronik. The series is characterized by its fine 0.635 mm pitch and modular design options. The SL 11 124 36 Z specifically represents a 36-position variant within this family, offering a standardized solution for connecting multiple signals between boards or wires in electronic assemblies requiring reliable interconnectivity.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include variants with different contact counts or plating finishes, such as SL 11 124 36 S. Verify that any replacement maintains the identical 0.635 mm pitch and single-row male configuration to ensure mechanical and electrical compatibility without modifying the host PCB design.
