SL 11 124 5 Z

Headers, Male Pins Overview

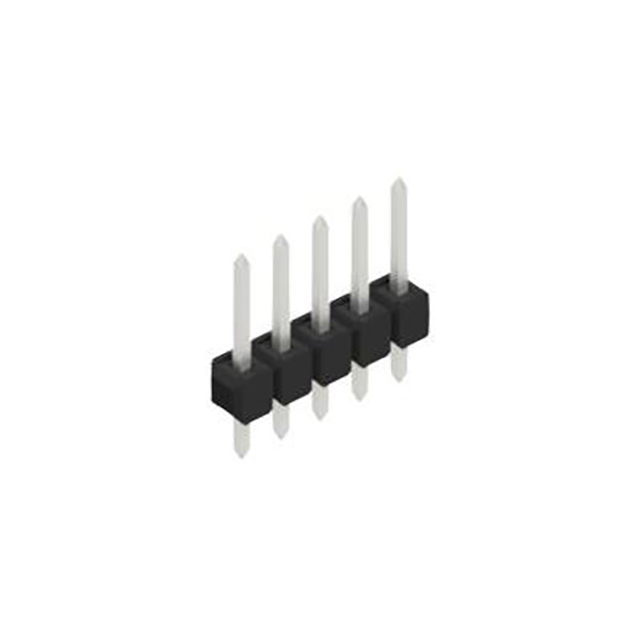

The SL 11 124 5 Z is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with five positions and a 0.100 inch (2.54 mm) pitch. The contacts are square pins made of copper alloy with tin plating, designed for through-hole mounting on printed circuit boards. This component provides reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male header configuration
• Through-hole mounting technology
• Tin-plated square contact pins

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Industrial control modules
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific pin count matches the '5' designation in the model number. Confirm that the through-hole termination style aligns with the target PCB layout requirements. Ensure the tin plating specification meets corrosion resistance needs for the operating environment.

Headers, Male Pins Selection Notes

Select this part when a low-profile, single-row connection is required. The 2.54 mm pitch ensures compatibility with standard mating connectors. Consider the mechanical stability provided by the through-hole design for applications subject to vibration or physical stress during operation.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered male headers. The series offers various contact counts while maintaining a consistent 0.635 mm contact cross-section. It is manufactured by Fischer Elektronik GmbH & Co. KG, a German provider of electronic interconnect solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical pitch and row configuration. Verify that alternative parts maintain the same through-hole termination and contact material specifications to ensure functional equivalence.
