SL 11 124 6 G

Headers, Male Pins Overview

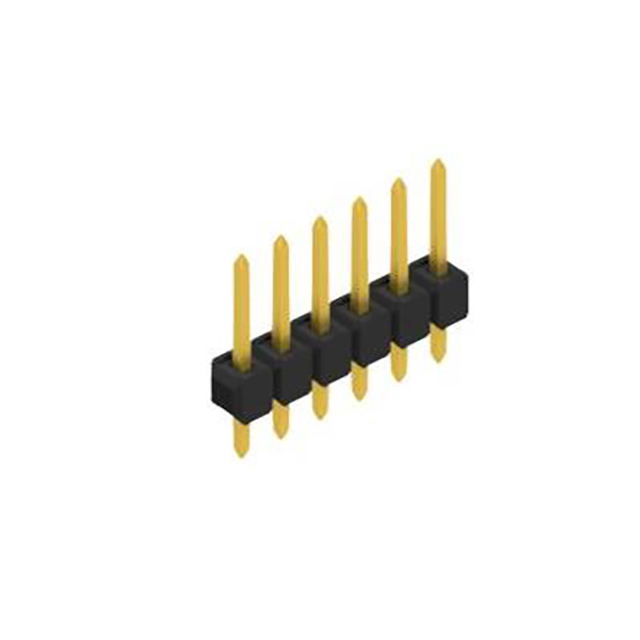

The SL 11 124 6 G is a male pin header manufactured by Fischer Elektronik. It features a single row with six positions and a contact pitch of 0.100 inches (2.54 mm). The connector utilizes gold-plated contacts for reliable signal transmission. Designed for through-hole mounting, it offers a standard profile suitable for board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row male pin configuration
• Gold-plated contact surfaces
• Through-hole solder termination

Headers, Male Pins Applications

• General-purpose electronic assemblies
• Board-to-board interconnection systems
• Wire-to-board connection points

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm the single-row configuration and six-position count. Ensure compatibility with existing PCB footprint designs regarding the 2.54 mm pitch spacing. Cross-reference datasheet specifications for temperature ratings and plating thickness requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for standard 2.54 mm pitch applications. Consider the through-hole mounting method and gold contact finish for durability. Evaluate space constraints on the target circuit board to ensure the physical dimensions align with the design layout requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered headers from Fischer Elektronik. The series focuses on compact and reliable connections with standardized pitch spacing. The SL 11 124 6 G represents a specific variant within this family, tailored for applications requiring a minimal number of contacts in a single linear arrangement.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes within the SL 11 series that match the six-position count and single-row layout. Verify mechanical dimensions and electrical characteristics against alternative suppliers if sourcing changes are necessary.
