SL 11 124 6 S

Headers, Male Pins Overview

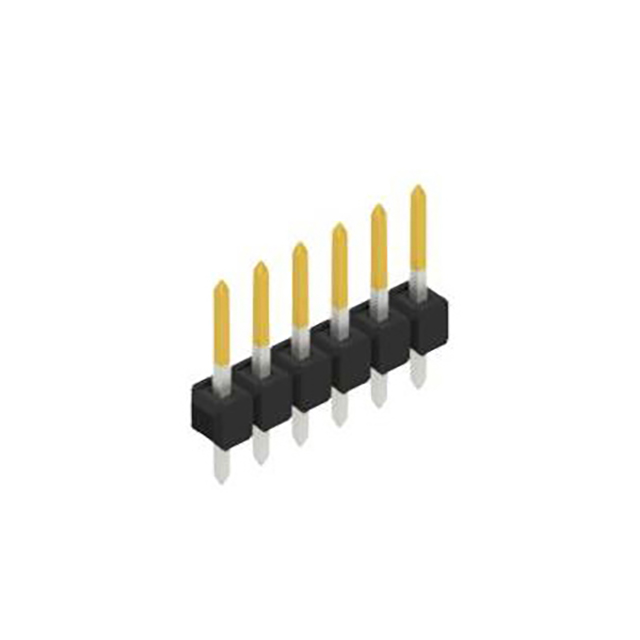

The SL 11 124 6 S is a surface mount male pin header manufactured by Fischer Elektronik. It features 6 positions with a 0.100 inch (2.54 mm) pitch and a single row configuration. The connector utilizes push-pull fastening and has a contact length of 0.157 inches (4.00 mm). Insulation height is 0.110 inches (2.80 mm), constructed from glass-filled polyamide (PA46). Mating contacts are gold-plated copper-tin, while post contacts are tin-plated. Operating temperature ranges from -40°C to 163°C.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Push-pull locking mechanism for secure connection
• Gold-plated mating contacts for reliable signal transmission
• Glass-filled polyamide insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronics
• Wire-to-board connections requiring surface mount termination
• Industrial control modules operating within specified temperature ranges

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' confirms surface mount termination rather than through-hole variants. Ensure the part number matches the required 6-position count and single-row layout. Confirm that the gold-plated mating contact specification aligns with system requirements for low-contact resistance applications. Cross-reference the manufacturer's latest datasheet for any updates on material composition or RoHS compliance status prior to procurement.

Headers, Male Pins Selection Notes

Select this component when surface mount technology is required for a 6-pin interface. The 2.54 mm pitch ensures compatibility with standard headers. The push-pull feature provides mechanical retention without screws. Consider the 163°C maximum operating temperature for high-heat environments. Verify that the board space accommodates the 2.80 mm insulation height and 4.00 mm contact length constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered connectors designed for compact electronic applications. The series offers various position counts and termination styles. The SL 11 124 6 S specifically addresses needs for small-footprint, high-reliability connections using surface mount technology. It complements other variants in the family that may offer different pin counts or through-hole options.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 6-position count, 2.54 mm pitch, surface mount termination, and push-pull locking mechanism. Verify identical insulation height and contact plating specifications. Fischer Elektronik internal cross-references should be consulted for exact functional equivalents. Generic headers may lack the specific push-pull retention or precise dimensional tolerances.
