SL 11 124 6 Z

Headers, Male Pins Overview

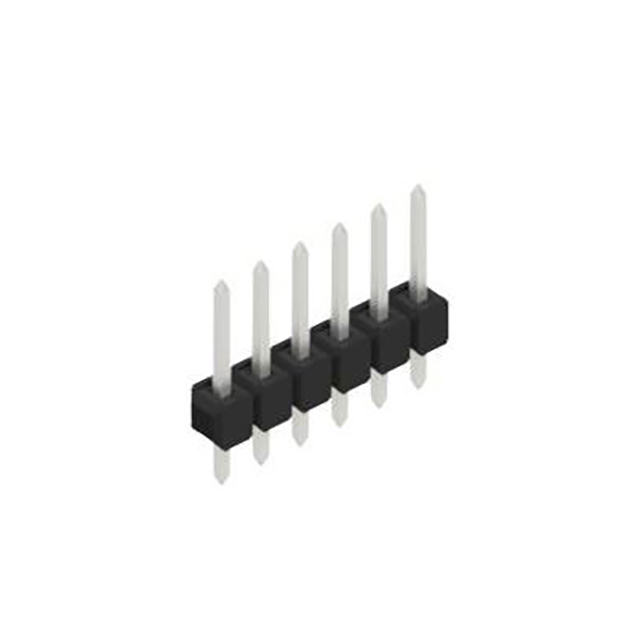

The SL 11 124 6 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and accommodates six contacts in a through-hole mounting configuration. The connector utilizes square-shaped pins with a tin-plated contact surface, providing a mating contact length of 0.213 inches (5.40 mm) and a column contact length of 0.118 inches (3.00 mm). Constructed with copper-tin contacts and polyamide insulation, the component ensures reliable electrical interconnection within rectangular connector systems.

Headers, Male Pins Feature Summary

• Single-row male pin header design for board-to-board or wire-to-board connections
• Through-hole mounting technology for secure PCB attachment
• Tin-plated square contact surfaces for corrosion resistance
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Prototype development boards
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the ordering code matches the required contact count and row configuration. Cross-reference the package type to confirm through-hole compatibility with your PCB fabrication capabilities before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for standard 2.54 mm pitch applications. Consider the through-hole mounting style for mechanical robustness compared to surface-mount alternatives. Evaluate the tin plating suitability for the operating environment and mating cycle requirements relative to other available contact finishes.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered connectors from Fischer Elektronik. The series offers various contact counts ranging from one to thirty-six positions with a consistent 2.54 mm grid spacing. These headers are designed for compact electronic assemblies requiring reliable signal transmission in rectangular connector configurations.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Verify compatibility with existing mating sockets before attempting substitution with generic industry equivalents.
