SL 11 124 7 G

Headers, Male Pins Overview

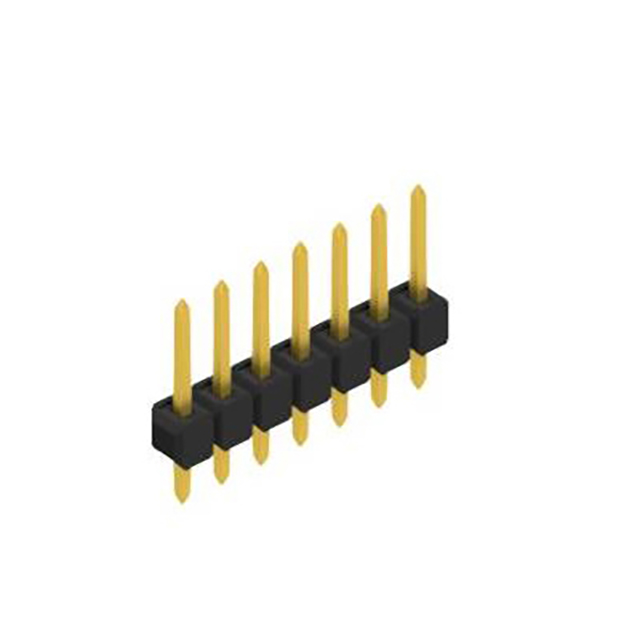

The SL 11 124 7 G is a male pin header connector from the Fischer Elektronik SL series. It features a single row of seven contacts with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole termination for secure PCB mounting. Contact surfaces are gold-plated to ensure reliable signal transmission and corrosion resistance. The housing is constructed from black insulating material, providing electrical isolation and mechanical stability for standard electronic interconnect applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration
• Gold-plated contact surfaces
• Through-hole PCB termination

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Signal routing on printed circuit boards
• Prototype development and testing setups

Headers, Male Pins Procurement Notes

Verify the specific part number against manufacturer documentation to confirm contact count and plating specifications. Ensure compatibility with mating female connectors regarding pitch and row alignment. Check datasheets for thermal handling limits during soldering processes. Confirm availability of official technical drawings for footprint verification before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold plating is required for low-current signal applications. The 2.54 mm pitch ensures compatibility with standard breadboard and ribbon cable systems. Consider the through-hole mounting style for robust mechanical fixation compared to surface mount alternatives. Evaluate insulation height requirements relative to adjacent components on the assembly.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL series of PCB connectors. The series offers various pole counts and configurations for board-to-board and wire-to-board connections. The SL 11 designation indicates a single-row male header variant. Fischer Elektronik specializes in high-quality interconnect solutions for industrial and consumer electronics markets.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other single-row 7-position male headers with 2.54 mm pitch and gold plating. Verify that alternative parts match the insertion depth and housing dimensions for proper fit. Ensure mating connectors share identical pitch and row specifications to maintain electrical continuity.
