SL 11 124 7 S

Headers, Male Pins Overview

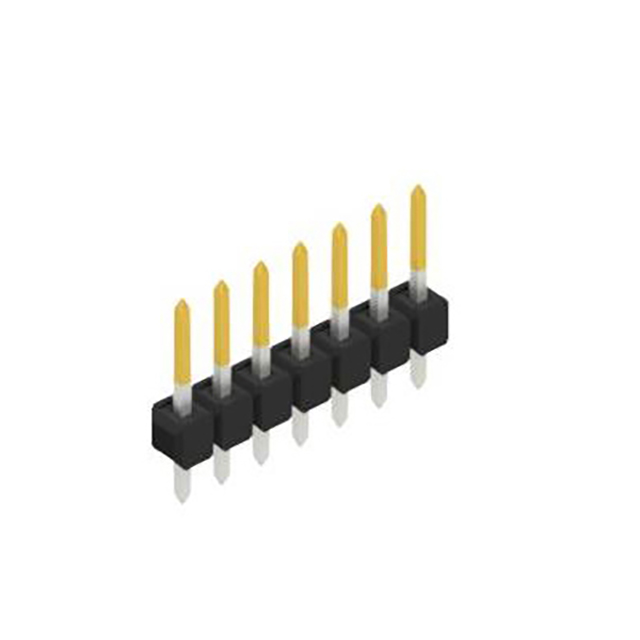

The Fischer Elektronik SL 11 124 7 S is a surface-mount male header connector designed for high-density PCB applications. It features a 0.635 mm pitch and a single row configuration with seven contacts. The housing utilizes glass-fiber reinforced PA 4.6 insulation, rated UL 94 V-0. Contact surfaces are tin-plated on the pin and gold-plated on the mating interface. It operates within a temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered single-row surface-mount design for compact circuit integration
• Dual-surface contact plating combining tin durability with gold conductivity
• High-temperature resistant PA 4.6 GF insulation body ensuring thermal stability

Headers, Male Pins Applications

• High-density electronic module interconnections
• Compact consumer electronics assembly
• Industrial control board signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the official Fischer Elektronik datasheet to confirm tin plating specifications. Ensure the single-row 7-position configuration matches the target PCB footprint. Cross-reference the UL 94 V-0 rating and operating temperature limits with system requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when space constraints require a 0.635 mm pitch single-row header. The surface-mount orientation suits automated assembly processes. Consider the thermal endurance up to 163°C for environments requiring robust heat resistance during operation or reflow soldering cycles.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors from Fischer Elektronik. The series offers various contact counts and row configurations. The SL 11 124 variant specifically denotes the housing dimensions and single-row layout, providing standardized connectivity solutions for modern electronic manufacturing.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Direct replacement requires matching the 0.635 mm pitch, single-row geometry, and surface-mount mounting style to ensure mechanical and electrical compatibility.
