Headers, Male Pins Overview

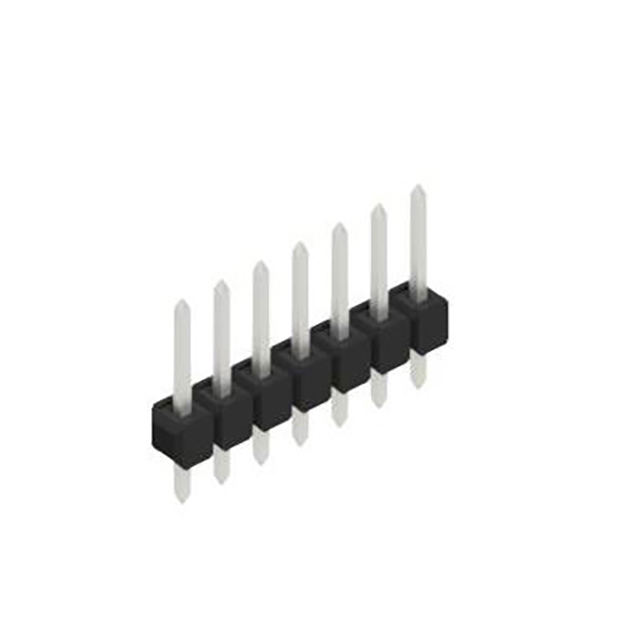

The SL 11 124 7 Z is a single-row, unshrouded pin header connector manufactured by Fischer Elektronik. It features seven positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are tin-plated copper pins with a nominal current rating of 3 A and a voltage rating of 250 VAC. The connector utilizes a PA46 insulating material and square contact shapes, providing reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row configuration with seven positions for standard PCB mounting
• Tin-plated copper contacts ensuring corrosion resistance and conductivity
• Rated for 250 VAC voltage and 3 A current applications
• Through-hole solder termination for secure mechanical attachment

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Electronic assembly signal routing
• Industrial control board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and contact plating thickness against the official Fischer Elektronik datasheet to ensure compatibility with mating connectors. Confirm that the through-hole footprint matches the target PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with 2.54 mm spacing is required. Ensure the 3 A current rating and 250 VAC insulation voltage meet the circuit specifications. Consider the through-hole mounting style for robust mechanical stability in the final assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and row configurations, standardized around a 2.54 mm pitch. The SL 11 124 7 Z specifically denotes a 7-position variant within this family, designed for general electronic interconnect needs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 7-position count, 2.54 mm pitch, single-row layout, and through-hole mounting type. Verify that alternative manufacturers provide identical 3 A/250 VAC ratings and compatible contact dimensions to ensure interchangeability without redesigning the PCB footprint.
