SL 11 124 8 S

Headers, Male Pins Overview

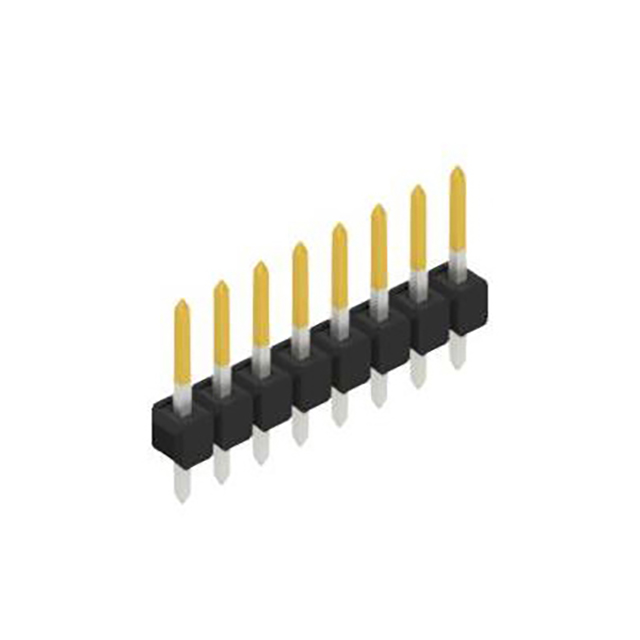

The SL 11 124 8 S is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row with 8 positions and a contact pitch of 0.100 inches (2.54 mm). The contacts have a square cross-section measuring 0.635 mm and are tin-plated. The connector utilizes polyamide insulation and has an overall contact length of 0.441 inches (11.20 mm), with a mating contact length of 0.213 inches (5.40 mm) and a column length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections.
• Square contact cross-section design ensuring stable mechanical engagement.
• Through-hole solder termination method for secure PCB attachment.

Headers, Male Pins Applications

• General purpose electronic circuit interconnections.
• Prototype development and testing setups.
• Industrial control panel wiring.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's current datasheet to confirm the exact plating specification and material composition, as suffixes often denote critical variations in surface finish or temperature rating within the SL 11 family. Ensure the ordering part number matches the required contact count and pitch exactly.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header with through-hole termination is required. Consider the square contact profile for mating compatibility. Verify that the operating temperature range and soldering thermal limits align with the assembly process requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which offers various contact counts ranging from 1 to 36 positions. The series is characterized by its 2.54 mm grid spacing and robust construction suitable for general electronic applications. The SL 11 124 variant specifically denotes the housing style and size within this lineup.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 8-position count and 2.54 mm pitch. Cross-referencing with other manufacturers requires matching the square contact shape and through-hole termination style to ensure physical fit and electrical continuity.
