SL 11 124 9 G

Headers, Male Pins Overview

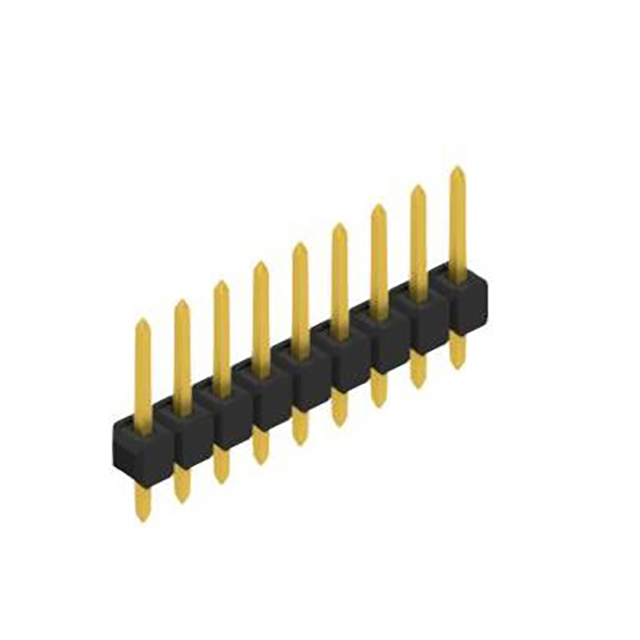

The SL 11 124 9 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and contains 9 positions. The component utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating on both the mating and column surfaces. The insulating body is constructed from polyamide (PA46). Key dimensional specifications include a contact length of 0.319 inches (8.10 mm) for mating, a column length of 0.118 inches (3.00 mm), and an overall contact length of 0.547 inches (13.90 mm). The insulation height measures 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single row configuration with square-shaped male pins designed for reliable board-to-board or wire-to-board connections.
• Through-hole mounting style ensures secure mechanical attachment to printed circuit boards.
• Tin-plated contacts provide corrosion resistance and stable electrical conductivity.

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system modules
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm exact pin count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and contact geometry. Confirm that the through-hole footprint matches the target PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for low-current applications. Consider the 9-position count and straight body orientation. Evaluate thermal stability requirements against the specified operating temperature range and soldering heat resistance limits provided in the datasheet.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered PCB connectors from Fischer Elektronik. The series offers various position counts while maintaining consistent 2.54 mm spacing. These headers are designed for compact electronic assemblies requiring durable mechanical connections.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative part numbers within the SL 11 series with different pin counts. Verify cross-compatibility with third-party headers sharing identical 2.54 mm pitch and through-hole mounting characteristics.
