SL 11 124 9 S

Headers, Male Pins Overview

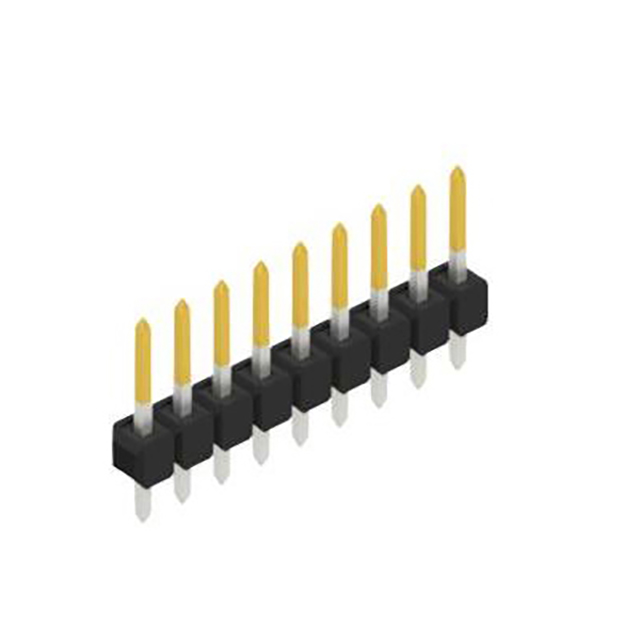

The SL 11 124 9 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 9 positions. The connector utilizes through-hole termination for secure board mounting. Contacts are constructed from copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance. The housing is made of polyamide (PA46), providing thermal stability and mechanical strength. This component is designed for standard interconnection applications requiring precise alignment and durable signal transmission.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward mating
• Through-hole soldering technique ensures robust PCB attachment
• Polyamide insulation offers high thermal performance
• Tin-plated contacts provide dependable conductivity

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Signal transmission in industrial control modules
• Board-to-board connection setups

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm current availability and manufacturing status. Ensure that the required contact count and pitch match the design specifications before procurement. Cross-reference the RoHS compliance status if environmental regulations apply to the target assembly. Confirm that the through-hole footprint aligns with the printed circuit board layout.

Headers, Male Pins Selection Notes

Select this connector when a single-row, low-profile header is required for dense packing arrangements. The 0.635 mm pitch allows for higher density compared to standard 2.54 mm headers. Consider the operating temperature range and the mechanical durability of the PA46 housing for the intended environment. Evaluate the need for tin plating versus other surface finishes based on solderability and long-term oxidation resistance requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of rectangular connectors produced by Fischer Elektronik. The series is characterized by its compact design and suitability for various electronic assemblies. The SL 11 124 9 S represents a specific variant within this family, defined by its nine-position capacity and single-row architecture. It serves as a fundamental interconnect element in modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct replacements or updated revisions of the SL 11 series. Verify compatibility with existing mating connectors regarding pitch and row configuration. Ensure that any substitute maintains the same through-hole termination method and housing material properties.
