SL 11 124 9 Z

Headers, Male Pins Overview

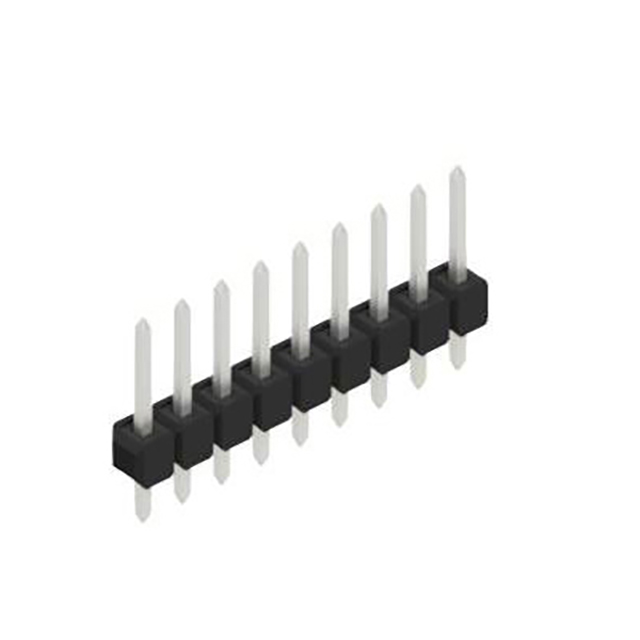

The SL 11 124 9 Z is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row with nine contacts and a standard 2.54 mm (0.100 inch) pitch. The contacts are constructed from CuSn alloy with selective gold plating to ensure reliable signal transmission. The insulating body is made of PA 4.6 nylon, rated for UL 94 V-0 flammability. This component supports a voltage rating of 250 V AC and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Single-row male header configuration with 2.54 mm pitch
• CuSn alloy contacts with selective gold plating
• PA 4.6 insulating body with UL 94 V-0 rating

Headers, Male Pins Applications

• General-purpose board-to-board interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '9' in the model number against the datasheet. Confirm that the gold-plated variant is required for your application environment. Check RoHS compliance status if restricted substances are a concern. Ensure the through-hole package type aligns with your PCB fabrication capabilities.

Headers, Male Pins Selection Notes

Select this part when a single-row, 9-position connection is needed with high reliability. The gold plating offers superior corrosion resistance compared to tin variants. Consider the operating temperature range and voltage ratings to ensure compatibility with the target circuit environment and safety standards.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 family of precision-engineered electronic connectors. The series offers various pin counts and configurations, all maintaining a consistent 2.54 mm grid spacing. These headers are widely used in applications requiring robust mechanical stability and electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical pitch and row count. Verify that any alternative maintains the same contact material and plating thickness requirements.
