SL 11 139 10 G

Headers, Male Pins Overview

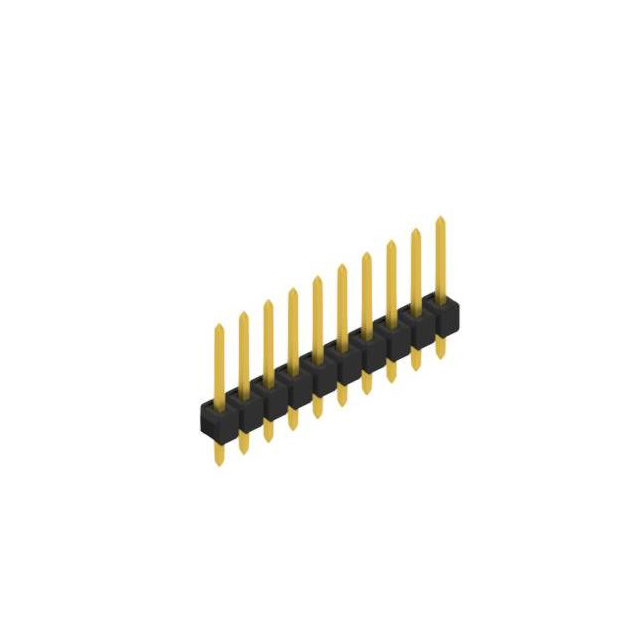

The Fischer Elektronik SL 11 139 10 G is a single-row male pin header connector designed for through-hole PCB mounting. It features 10 positions with a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated tin (Sn) with a thickness of 46 µm, providing reliable conductivity and corrosion resistance. The connector utilizes a PA46 (polyamide) insulator, offering mechanical stability and thermal endurance. Key dimensions include an insertion depth of 3.00 mm and a total contact length of 13.90 mm. The operating temperature range spans from -40°C to +163°C, ensuring performance in varied environmental conditions.

Headers, Male Pins Feature Summary

• Single-row configuration optimized for high-density board-to-board or wire-to-board interconnections
• Gold-plated tin contact surface ensures durable electrical performance and oxidation resistance
• Polyamide (PA46) insulation material provides robust mechanical integrity and thermal stability

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies requiring precise signal transmission
• Industrial control systems demanding robust mechanical stability under thermal stress
• Consumer electronics utilizing through-hole mounting for reliable connectivity

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold-plated tin finish as documented in the official Fischer Elektronik datasheet. Confirm that the 10-position count matches the design requirements, as this series offers various pole counts. Ensure compatibility with standard 2.54 mm pitch mating connectors to guarantee proper insertion depth and electrical continuity during assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header is required for applications involving temperatures up to 163°C. The 2.54 mm pitch suits general-purpose interconnects, while the gold-plated tin finish addresses corrosion concerns. Consider the 3.00 mm insertion depth for PCB thickness constraints. This model is part of the SL 11 series, which prioritizes precision engineering for demanding electronic environments.

Headers, Male Pins Part Context

The SL 11 139 10 G belongs to the Fischer Elektronik SL 11 series of precision-engineered pin headers. This series is characterized by its one-row layout and 2.54 mm pitch, catering to applications needing reliable signal transmission. The '139' designation typically relates to the series dimensional profile, while '10' specifies the number of poles. Fischer Elektronik manufactures these components in Germany, emphasizing quality standards for industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other pole counts such as SL 11 139 12 G or SL 11 139 16 G, provided the position count differs but the form factor remains identical. Verify that any alternative maintains the 2.54 mm pitch and through-hole mounting style. Cross-referencing with Fischer Elektronik's official replacement guide is recommended to ensure mechanical and electrical compatibility.
