SL 11 139 10 S

Headers, Male Pins Overview

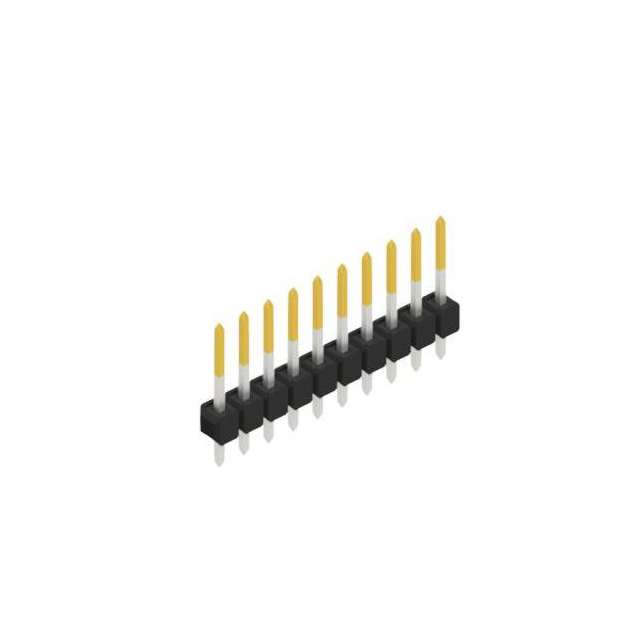

The Fischer Elektronik SL 11 139 10 S is a single-row male pin header connector designed for through-hole mounting on printed circuit boards. It features ten positions with a standard 2.54 mm (0.100 inch) pitch, ensuring compatibility with industry-standard mating connectors. The contacts are constructed from copper alloy and finished with tin plating to provide reliable electrical conductivity and corrosion resistance. This component belongs to the SL 11 series, offering a straight configuration suitable for various electronic assemblies requiring secure board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row male pin design for straightforward PCB integration
• Through-hole termination method ensures mechanical stability
• Tin-plated contacts provide durable conductive surfaces
• Standard 2.54 mm pitch supports widespread mating compatibility

Headers, Male Pins Applications

• General-purpose electronic equipment assembly
• Industrial control system interconnections
• Consumer electronics board-to-board linking
• Test and measurement device prototyping

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material composition. Ensure the selected variant matches the required insertion depth and insulation height for the target PCB stack-up. Cross-reference the part number with Fischer Elektronik's current product database to confirm availability and compliance with RoHS directives before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when a single-row, through-hole male header with ten positions is required. Confirm that the 2.54 mm pitch aligns with the mating socket or cable assembly specifications. Evaluate the mechanical retention needs of the application to ensure the through-hole design provides sufficient holding force. Consider environmental factors such as temperature range and exposure to corrosive agents when assessing the suitability of the tin-plated contacts for long-term reliability.

Headers, Male Pins Part Context

This component is part of the Fischer Elektronik SL 11 series, which offers a range of male pin headers in varying pole counts. The series is characterized by its robust construction and standardized dimensions, facilitating easy integration into diverse electronic designs. The SL 11 139 10 S specifically addresses applications requiring a moderate density of connections in a compact, single-row format.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 10-position configurations and 2.54 mm pitch. Verify that alternative parts maintain the same through-hole termination style and straight orientation. Ensure mating connectors match the contact geometry and plating specifications to guarantee proper electrical performance and mechanical fit.
