SL 11 139 10 Z

Headers, Male Pins Overview

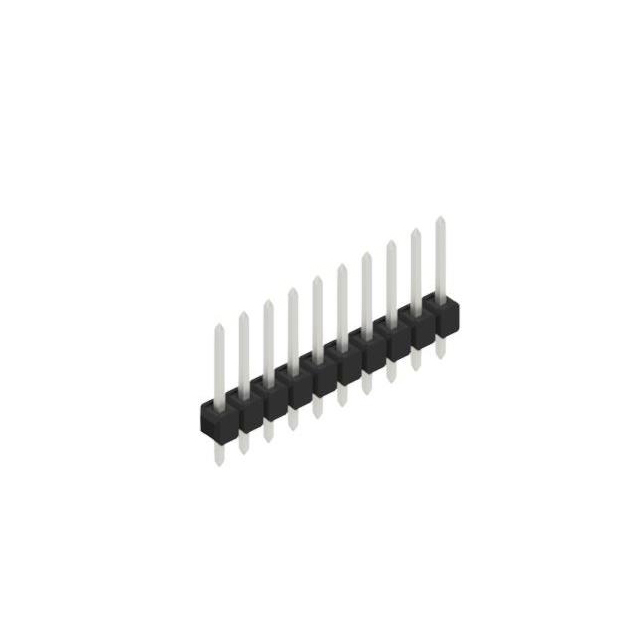

The SL 11 139 10 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 10 contacts. Designed for through-hole mounting, the connector utilizes square pins with tin plating on both the mating and column surfaces. The contact material is copper-tin, while the insulation is made of polyamide (PA46). The total contact length measures 13.90 mm, with a mating contact length of 8.10 mm and a column length of 3.00 mm. The insulation height is 2.80 mm.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single row arrangement with 2.54 mm spacing between contacts
• Tin-plated copper-tin contacts for reliable conductivity
• Polyamide insulation housing rated UL 94 V-0

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board-to-board connectivity in modular systems
• Wire-to-board connections in control panels

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and pitch before ordering. Confirm that the through-hole mounting style aligns with the target printed circuit board layout. Ensure compatibility with standard reflow soldering profiles as indicated in official documentation. Check for any specific handling requirements related to the polyamide insulation material during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the physical dimensions, particularly the total contact length and insulation height, to ensure adequate clearance within the enclosure. Verify that the tin-plated contact surface meets the corrosion resistance needs of the operating environment. Compare against similar models in the SL 11 series if different contact counts or mounting styles are needed.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of headers from Fischer Elektronik, which offers various configurations of male pin connectors. The series typically provides options for different numbers of positions and mounting types. The SL 11 139 10 Z specifically represents a 10-position variant designed for standard 2.54 mm pitch applications, fitting into the broader category of rectangular connectors used for general electronic interconnections.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers within the SL 11 series with identical 2.54 mm pitch and 10 positions, such as SL 11 139 10 G, provided the suffix change does not alter functional specifications. Cross-manufacturer replacements must match the 2.54 mm pitch, through-hole mounting, and single-row male pin configuration exactly.
