SL 11 139 11 G

Headers, Male Pins Overview

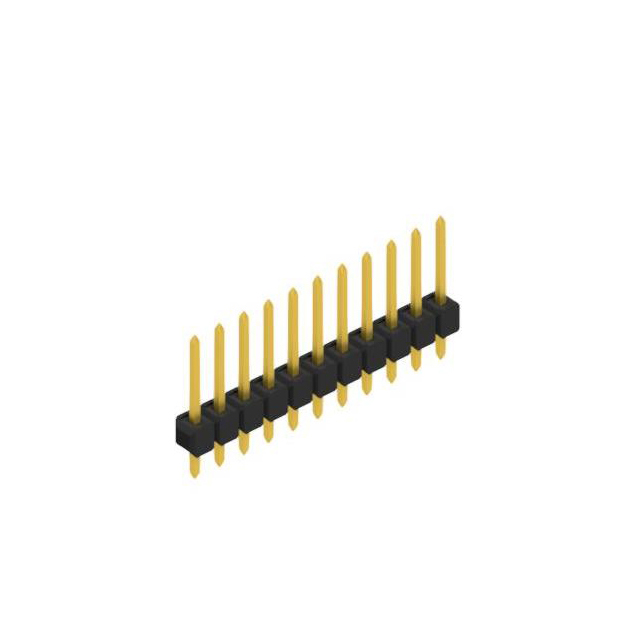

The SL 11 139 11 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm pin cross-section and a 2.54 mm (0.100 inch) pitch. The component has 11 positions and utilizes through-hole mounting for PCB integration. Contact materials consist of copper with tin plating, providing reliable electrical connections. The connector design ensures precise alignment and secure mating with corresponding female sockets.

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB mounting
• Precision-engineered 0.635 mm pin cross-section for stable contact
• Tin-plated copper contacts ensuring corrosion resistance
• Through-hole termination method for robust mechanical fixation

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• PCB-to-PCB communication links
• Prototype development and testing setups
• Industrial control module assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the 11-position variant matches the required circuit density. Cross-reference the part number with official Fischer Elektronik documentation to confirm availability and compliance with RoHS standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The 0.635 mm pin dimension offers specific mechanical stability compared to standard pins. Consider the through-hole mounting requirement and ensure the PCB layout accommodates the 11-position footprint. Verify that the tin-plated contacts meet the environmental conditions of the target application.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision male headers designed for high-reliability applications. These connectors are characterized by their consistent pitch and robust construction. The SL 11 139 11 G is a specific variant within this series, tailored for circuits requiring exactly 11 connection points in a single row, balancing compactness with electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 11 positions, and single-row male configuration. Verify compatibility with existing PCB footprints and mating socket dimensions. Ensure alternative components offer similar tin-plated contact finishes and through-hole mounting capabilities to maintain mechanical and electrical integrity.
