SL 11 139 11 Z

Headers, Male Pins Overview

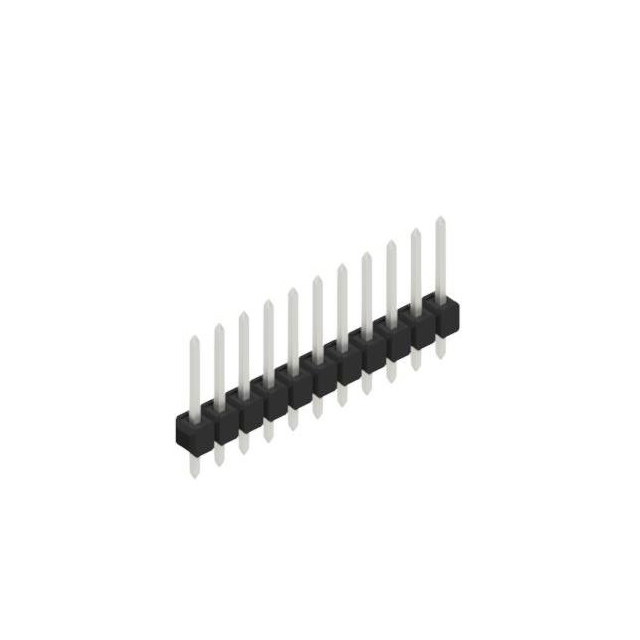

The SL 11 139 11 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 11 contacts designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped pins with a tin-plated copper-tin contact material to ensure reliable electrical connections. Key dimensional specifications include an overall contact length of 13.90 mm, a mating contact length of 8.10 mm, and a column contact length of 3.00 mm. The insulating housing is constructed from polyamide (PA46), providing structural integrity and thermal resistance. The component is currently in active production status.

Headers, Male Pins Feature Summary

• Single-row configuration with 11 positions for standard board-to-board or wire-to-board interconnections
• Through-hole termination method ensuring secure mechanical attachment to the PCB
• Tin-plated copper-tin contacts offering corrosion resistance and stable conductivity
• Polyamide insulation housing rated for standard electronic assembly processes

Headers, Male Pins Applications

• General-purpose electronic equipment internal wiring
• Industrial control system signal transmission
• Consumer electronics board interconnection

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm exact plating thickness and housing color variants. Ensure that the ordering information matches the required contact count and row configuration. Cross-reference the datasheet for peak reflow temperature limits to guarantee compatibility with your assembly process. Confirm availability through authorized distributors as stock levels fluctuate.

Headers, Male Pins Selection Notes

Select this component when a single-row, 11-position male header with a 2.54 mm pitch is required. Consider the through-hole mounting style and polyamide insulation material for standard environmental conditions. Evaluate the insertion depth and overall height constraints against your PCB layout requirements. Compare alternative series within the Fischer Elektronik portfolio if different contact geometries or higher density options are needed.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations for diverse electronic applications. Similar models include the SL 11 139 8 Z and SL 11 139 25 Z, which share the same pitch and structural design but differ in contact quantity. The SL 11 series is characterized by its robust construction and suitability for general-purpose interconnect needs.
