SL 11 139 12 Z

Headers, Male Pins Overview

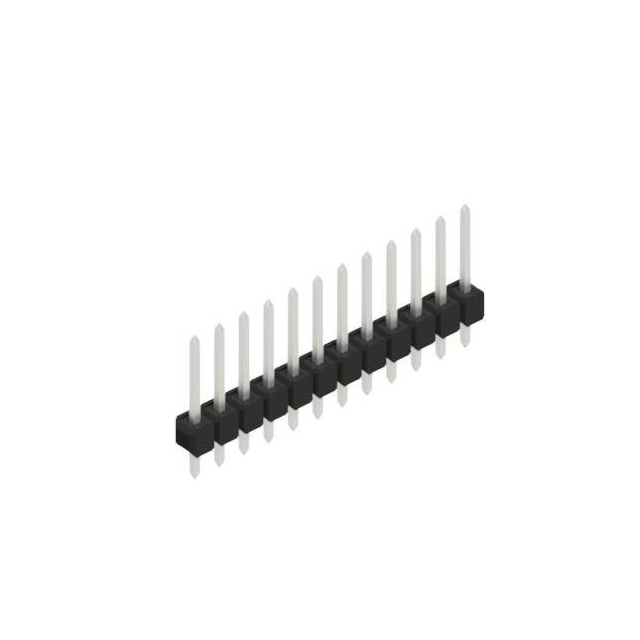

The SL 11 139 12 Z is a male header connector from Fischer Elektronik, designed for through-hole mounting. It features a single row with 12 positions and a pitch of 0.100 inches (2.54 mm). The contacts have a square cross-section of 0.635 mm and are tin-plated. The mating contact length is 0.319 inches (8.10 mm), while the post contact length is 0.118 inches (3.00 mm). The total contact length measures 0.547 inches (13.90 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB integration.
• Square contact cross-section ensuring robust mechanical stability.
• Tin-plated copper-silver contacts for reliable signal transmission.

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies.
• Precision engineering interconnects requiring stable signal paths.
• General-purpose board-to-board or cable-to-board connections.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the ordering number matches the required pin count and row configuration. Cross-reference the insulation material grade and temperature ratings with application requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. The 12-position variant fits applications needing moderate channel density. Consider the through-hole mounting style and square contact profile for compatibility with mating sockets. Verify that the tin plating meets corrosion resistance needs for the operating environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series by Fischer Elektronik, which offers various pin counts in a single-row format. The series utilizes a 2.54 mm grid spacing and square contact geometry. It is categorized under rectangular connectors and male pins, serving as a standard interconnect solution within the manufacturer's broader portfolio of PCB headers.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Fischer Elektronik directly for compatible alternatives or verify cross-references through authorized distributor databases if original stock is unavailable.
