SL 11 139 13 G

Headers, Male Pins Overview

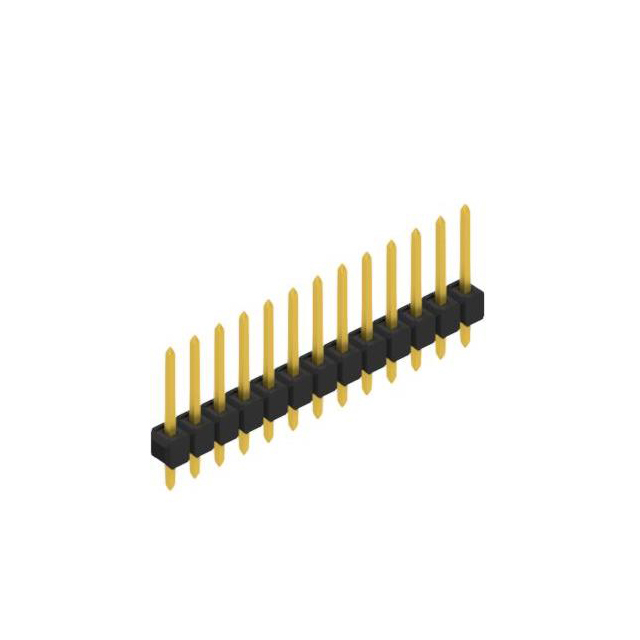

The SL 11 139 13 G is a one-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and contains 13 positions. The contacts are square-shaped with a tin-plated finish, constructed from copper-tin alloy. Designed for through-hole mounting, the connector has an overall contact length of 13.90 mm, a mating contact length of 8.10 mm, and a column contact length of 3.00 mm. The insulation height is 2.80 mm, and the housing material is polyamide (PA46).

Headers, Male Pins Feature Summary

• One-row male pin header configuration with square contact cross-sections.
• Through-hole mounting design utilizing polyamide insulation.
• Tin-plated copper-tin contacts for reliable electrical connection.

Headers, Male Pins Applications

• General-purpose PCB interconnections requiring standard spacing.
• Signal routing in electronic assemblies.
• Prototype development and testing setups.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the 13-position variant. Confirm that the through-hole footprint aligns with the target PCB layout dimensions before procurement.

Headers, Male Pins Selection Notes

Select this component when a single row of male pins with 0.635 mm spacing is required. Consider the 13-position count for circuit complexity. Verify compatibility with mating female connectors regarding contact length and insulation height. Ensure the operating temperature range meets system requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered male headers from Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions while maintaining a consistent 0.635 mm grid. These connectors are designed for robust PCB integration with standardized dimensions.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other variants such as SL 11 139 28 G or SL 11 139 33 Z, provided the contact count difference is acceptable. Verify that alternative parts maintain the same 0.635 mm pitch and through-hole mounting style to ensure mechanical fit.
