SL 11 139 13 S

Headers, Male Pins Overview

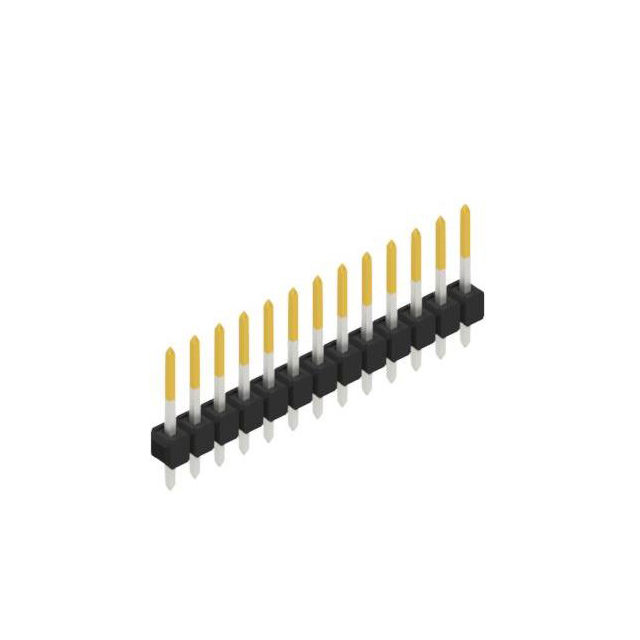

The SL 11 139 13 S is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 13 contacts and a 0.100 inch (2.54 mm) pitch. The connector utilizes square pins with tin plating on the mating surface. Constructed with PA46 insulation, it supports a temperature range of -40°C to +163°C and withstands reflow soldering at 260°C for 10 seconds. The total contact length measures 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections.
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards.
• Tin-plated copper alloy contacts providing reliable conductivity and corrosion resistance.
• PA46 (Nylon) insulation material offering thermal stability and mechanical durability.

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the 13-position variant. Confirm that the through-hole footprint aligns with the PCB design guidelines provided in the official technical drawing. Check for RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Evaluate the total height and contact length dimensions to ensure compatibility with enclosure constraints and mating connector requirements. Verify that the tin plating meets the electrical performance needs of the application.

Headers, Male Pins Part Context

The SL 11 139 series comprises precision-engineered male headers from Fischer Elektronik. These connectors are characterized by their robust construction and consistent 2.54 mm spacing. The series offers various contact counts, allowing for flexible integration into diverse electronic designs. They are widely used in applications requiring reliable signal transmission and durable physical connections.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 139 series with different contact counts. Generic equivalents may vary in insulation material, plating quality, and dimensional tolerances. Verify that any alternative part matches the 2.54 mm pitch and through-hole mounting style to ensure mechanical and electrical compatibility.

Headers, Male Pins FAQ

What is the insulation material used in the SL 11 139 13 S?

The connector uses PA46, also known as Nylon, for its insulation housing.

What is the maximum temperature rating for the connector?

The connector is rated for an operating temperature range up to +163°C.

Does the SL 11 139 13 S support reflow soldering?

Yes, it can withstand reflow soldering conditions of 260°C for 10 seconds.
