SL 11 139 13 Z

Headers, Male Pins Overview

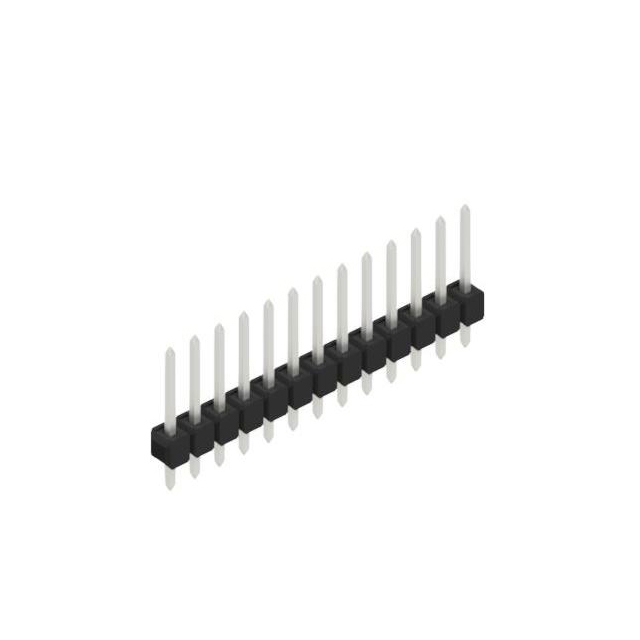

The SL 11 139 13 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 13 positions. Designed for through-hole mounting, the connector utilizes square pins with tin plating on both the mating and column sections. The contact material is copper-tin, with a mating surface thickness of 157.5 µin (4.00 µm). The housing is constructed from polyamide (PA46), providing an insulation height of 0.110 inches (2.80 mm). Total contact length measures 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm) and a column length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with 13 male pins for reliable electrical interconnection.
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards.
• Tin-plated copper-tin contacts provide corrosion resistance and stable conductivity.
• Polyamide (PA46) insulation offers thermal stability and mechanical durability.

Headers, Male Pins Applications

• General-purpose PCB interconnections in electronic assemblies.
• Wire-to-board connections requiring robust through-hole mounting.
• Industrial control systems utilizing standard 2.54 mm spacing.
• Consumer electronics hardware integration.

Headers, Male Pins Procurement Notes

Verify the part number SL 11 139 13 Z against official Fischer Elektronik documentation to confirm the 13-position count and single-row layout. Ensure compatibility with standard 2.54 mm pitch sockets or cables. Check RoHS compliance status if required by specific project regulations. Confirm that the through-hole footprint matches the target PCB design specifications prior to ordering.

Headers, Male Pins Selection Notes

Select this component when a 13-position male header is required for through-hole assembly. The 2.54 mm pitch is standard for many legacy and modern designs. Consider the PA46 insulation material for applications requiring moderate thermal resistance. Verify that the 3A current rating aligns with the system's power requirements. Ensure the straight form factor fits within the available vertical clearance of the enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent 2.54 mm pitch and through-hole construction. Similar variants include the SL 11 139 18 Z and SL 11 139 25 Z, which differ only in the number of positions. The SL 11 series is designed for general electronic interconnect needs, emphasizing reliability and standardization across different board layouts.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, 13 positions, and through-hole termination. Generic equivalents must match the pin dimensions and insulation height to ensure proper mating. Verify that alternative suppliers offer tin-plated contacts and PA46 insulation for equivalent performance characteristics.

Headers, Male Pins FAQ

What is the current rating for the SL 11 139 13 Z?

The connector supports a maximum current of 3 Amperes per position.

Is the SL 11 139 13 Z RoHS compliant?

Yes, the component complies with RoHS standards as indicated in manufacturer specifications.

What is the insulation material used in this header?

The housing is made from polyamide (PA46), also known as nylon.
