SL 11 139 14 G

Headers, Male Pins Overview

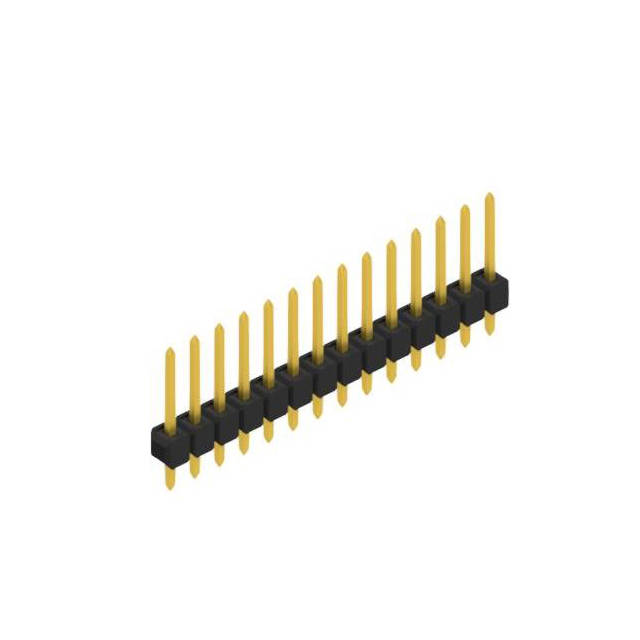

The SL 11 139 14 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 14 positions and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated copper-tin, designed for through-hole mounting. The connector utilizes polyamide insulation rated for an operating temperature range of -40°C to 163°C. This component provides reliable signal transmission in high-density electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for board-to-board or wire-to-board connections
• Gold-plated contacts ensure durable electrical performance and corrosion resistance
• Polyamide insulation material supports high-temperature operation up to 163°C

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies
• Precision-engineered circuit board interconnections
• Signal transmission in compact electronic devices

Headers, Male Pins Procurement Notes

Verify the specific contact finish and pin count against the official datasheet before procurement. Ensure the through-hole mounting style matches the PCB design requirements. Confirm that the polyamide insulation rating meets the thermal constraints of the intended application environment to guarantee long-term reliability.

Headers, Male Pins Selection Notes

Select this model when a single-row, 2.54 mm pitch male header is required. The gold plating offers superior conductivity compared to tin variants. Consider the 14-position count and straight orientation. Verify compatibility with mating sockets and ensure the operating temperature range aligns with system specifications.

Headers, Male Pins Part Context

This component belongs to the SL 11 139 series from Fischer Elektronik, which specializes in precision connectors. The series typically includes various pin counts and configurations. The SL 11 139 14 G specifically denotes a 14-pin variant within this standardized lineup, maintaining consistent mechanical dimensions and interface characteristics across the family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, single-row layout, and gold-plated contacts. Ensure the replacement part matches the 14-pin count and through-hole mounting style. Verify that the insulation material and temperature rating meet or exceed the original specifications.
