SL 11 139 14 Z

Headers, Male Pins Overview

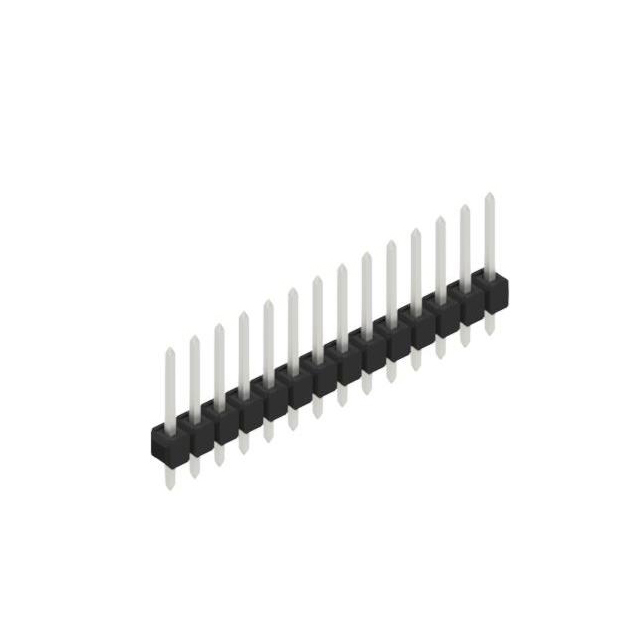

The SL 11 139 14 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 14 positions. The connector utilizes through-hole termination with square pins made of copper-tin alloy, finished with a tin plating layer of 157.5 µin (4.00 µm). The overall contact length measures 13.90 mm, with an insertion depth of 8.10 mm and a column length of 3.00 mm. Insulation is provided by polyamide (PA46), rated for operation between -40°C and +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for standard board-to-board or cable connections
• Through-hole mounting style ensuring secure mechanical attachment to printed circuit boards
• Tin-plated contacts providing reliable conductivity and corrosion resistance
• Polyamide insulation material offering thermal stability within specified operating ranges

Headers, Male Pins Applications

• General purpose electronic interconnects in consumer devices
• Industrial control panel wiring and signal distribution
• Embedded system module connections requiring standard 2.54 mm spacing
• Prototyping and development board assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm tin plating specifications and packaging details. Ensure the required pin count matches exactly 14 positions. Confirm that the through-hole footprint on the target PCB aligns with the 2.54 mm pitch dimensions. Check for any RoHS compliance documentation if environmental regulations apply to the end product.

Headers, Male Pins Selection Notes

Select this component when a single-row, 14-position male header is required for through-hole assembly. The 2.54 mm pitch is standard for general electronics, ensuring compatibility with common mating sockets. Consider the tin plating for cost-effective applications where high-frequency performance is not critical. Verify that the 13.90 mm overall height fits within the enclosure constraints of the final device design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which focuses on standard pin headers for various electronic assemblies. The series offers multiple row counts and pole numbers to suit different connectivity needs. The SL 11 139 14 Z represents a specific configuration within this lineup, optimized for straightforward, reliable connections in low-to-medium density circuit designs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 14 positions, single-row layout, and through-hole termination. Verify that alternative manufacturers offer comparable tin plating thickness and PA46 insulation materials. Ensure the mechanical dimensions, particularly the insertion depth and overall height, are compatible with existing PCB layouts and housing requirements.
