SL 11 139 15 G

Headers, Male Pins Overview

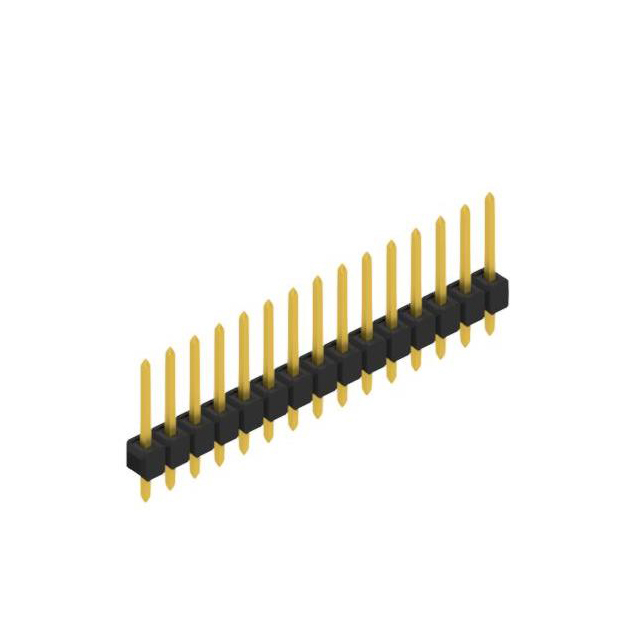

The SL 11 139 15 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 15 positions. The connector utilizes square-shaped pins with tin plating on both the mating and column surfaces, providing a contact thickness of 157.5 µin (4.00 µm). Constructed from copper-tin alloy contacts and PA46 nylon insulation, it supports a total contact length of 0.547 inches (13.90 mm). The design includes an insertion depth of 0.118 inches (3.00 mm) for the column and 0.319 inches (8.10 mm) for mating, ensuring secure through-hole PCB mounting.

Headers, Male Pins Feature Summary

• Single-row configuration with 0.100 inch pitch for standard spacing
• Square pin shape with tin-plated copper-tin contacts for reliable conductivity
• PA46 nylon insulation material offering thermal stability
• Through-hole mounting style for secure PCB attachment

Headers, Male Pins Applications

• General electronic circuit interconnections
• PCB-to-PCB communication links
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against official Fischer Elektronik documentation to confirm plating specifications and material composition. Ensure the required pin count matches the 15-position variant. Cross-reference the datasheet for mechanical dimensions to confirm compatibility with target PCB layouts and mating connectors. Confirm availability through authorized distributors as part numbers may have specific ordering constraints.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 15 positions and 2.54 mm spacing is required. The tin-plated contacts suit general-purpose applications without harsh environmental exposure. Consider the PA46 insulation for standard operating temperatures. Verify that the through-hole footprint aligns with the manufacturing process. Compare against other series if higher density or different contact materials are needed.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent 0.100 inch pitch and mechanical standards. The SL 11 139 15 G represents a mid-range position count within this family, designed for reliable signal transmission in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 15-position and 2.54 mm pitch specifications. Ensure any replacement maintains the same through-hole mounting style and square pin geometry. Verify that the insulation material and contact plating meet the original application requirements before substitution.
