SL 11 139 15 S

Headers, Male Pins Overview

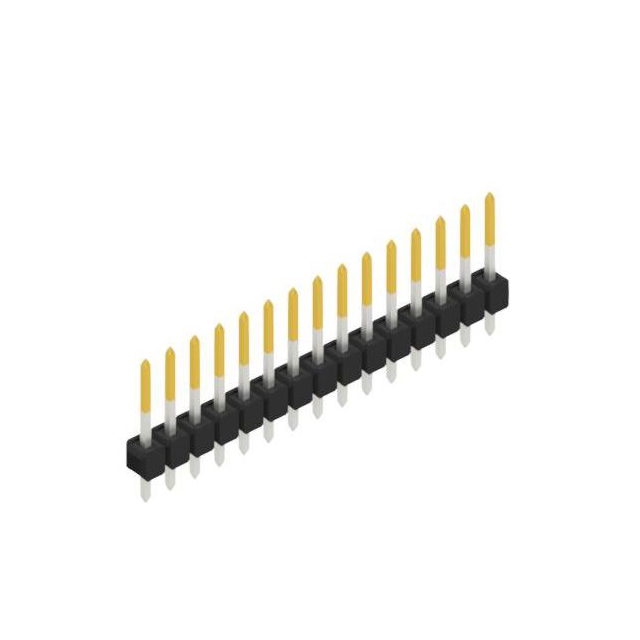

The SL 11 139 15 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 15 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting and has square contact pins made of copper-tin alloy. The mating contact length is 0.319 inches (8.10 mm), while the column contact length is 0.118 inches (3.00 mm). Total contact length measures 0.547 inches (13.90 mm). Insulation height is 0.110 inches (2.80 mm). Contacts are tin-plated with a thickness of 157.5 µin (4.00 µm). The insulating material is polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB header applications.
• Through-hole mounting design ensuring mechanical stability.
• Tin-plated copper-tin contacts for reliable signal transmission.

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies.
• General-purpose signal transmission in electronic circuits.
• Robust mechanical interconnects requiring stable positioning.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the required pin count matches the 15-position variant exactly. Cross-reference the insulation material designation PA46 if thermal or chemical resistance requirements are critical for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole assembly. Confirm that the 15-pin count aligns with circuit board layout constraints. Verify that the tin plating specification meets the environmental and conductivity requirements of the target system without needing gold plating alternatives.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and row configurations. The SL 11 139 15 S specifically denotes the 15-position variant within the 139 sub-series, characterized by its specific dimensional profile and contact arrangement suitable for standard industrial electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 15-position counts and 2.54 mm pitch. Ensure replacement parts maintain the same through-hole mounting style and single-row configuration to preserve mechanical fit and electrical interface compatibility.
